Assembly

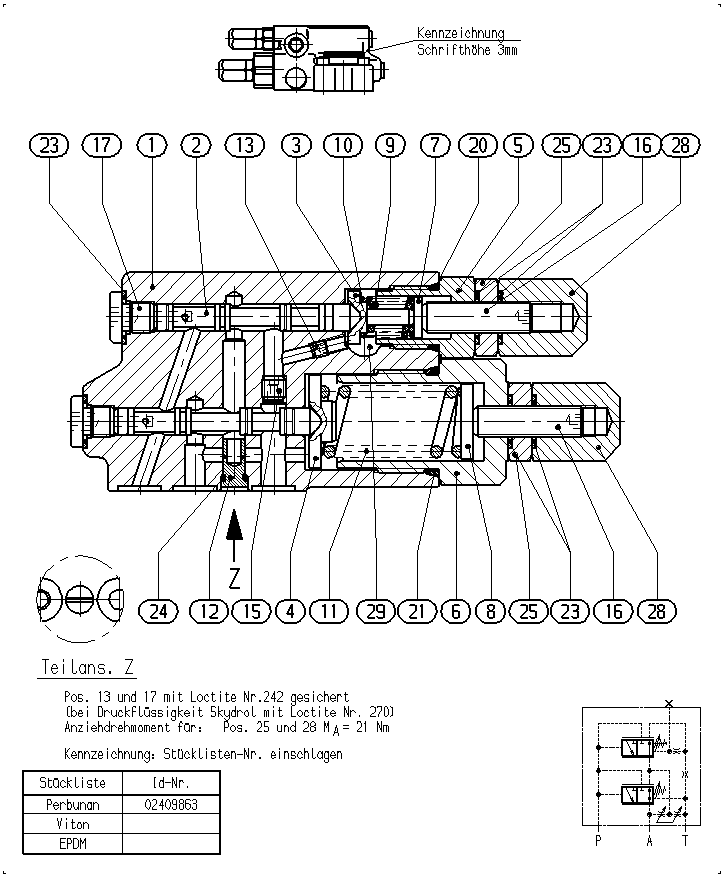

CONTROL VALVER902409863
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910930852 | VALVE HOUSING | 1 | ||
| R910900311 | VALVE SPOOLD | 2 | ||
| R910929875 | SPRING DISK | 1 | ||
| R910707023 | SPRING DISK | 1 | ||
| R910935862 | SCREW PLUG | 1 | ||
| R910913809 | SCREW PLUG | 1 | ||
| R910900362 | WASHER | 1 | ||
| R910900389 | WASHER | 1 | ||
| R910924695 | COMPRESSION SPRING | 1 | ||
| R910924709 | COMPRESSION SPRING | 1 | ||
| R902409887 | COMPRESSION SPRING | 1 | ||
| R910930560 | ORIFICE | 1 | ||
| R910914740 | NOZZLE | 1 | ||
| R910925518 | NOZZLE | 1 | ||
| R910913807 | SETSCREW | 2 | ||
| R910933812 | SCREW PLUG | 2 | ||
| R910515124 | O-RING | 1 | ||
| R910574953 | O-RING | 1 | ||
| R910114774 | BONDED SEAL RING | 6 | ||
| R910977084 | O-RING | 1 | ||
| R910913806 | NUT | 2 | ||
| R910913805 | CAP NUT | 2 | ||
| R909154478 | SCREW PLUG | 2 |
