Assembly

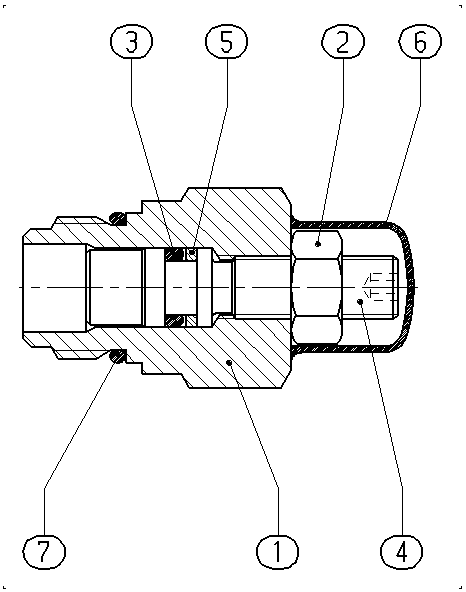

STROKE LIMITERR902410523
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902410449 | SCREW PLUG | 1 | ||
| R910934194 | HEXAGON NUT | 1 | ||
| R910101982 | O-RING | 1 | ||
| R910960773 | STUD BOLT | 1 | ||
| R910946269 | BACKUP RING | 1 | ||
| R910946307 | PROTECTIVE CAP | 1 | ||
| R910401803 | O-RING | 1 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902410449 | SCREW PLUG | 1 | ||
| R910934194 | HEXAGON NUT | 1 | ||
| R910101982 | O-RING | 1 | ||
| R910960773 | STUD BOLT | 1 | ||
| R910946269 | BACKUP RING | 1 | ||
| R910946307 | PROTECTIVE CAP | 1 | ||
| R910401803 | O-RING | 1 |
