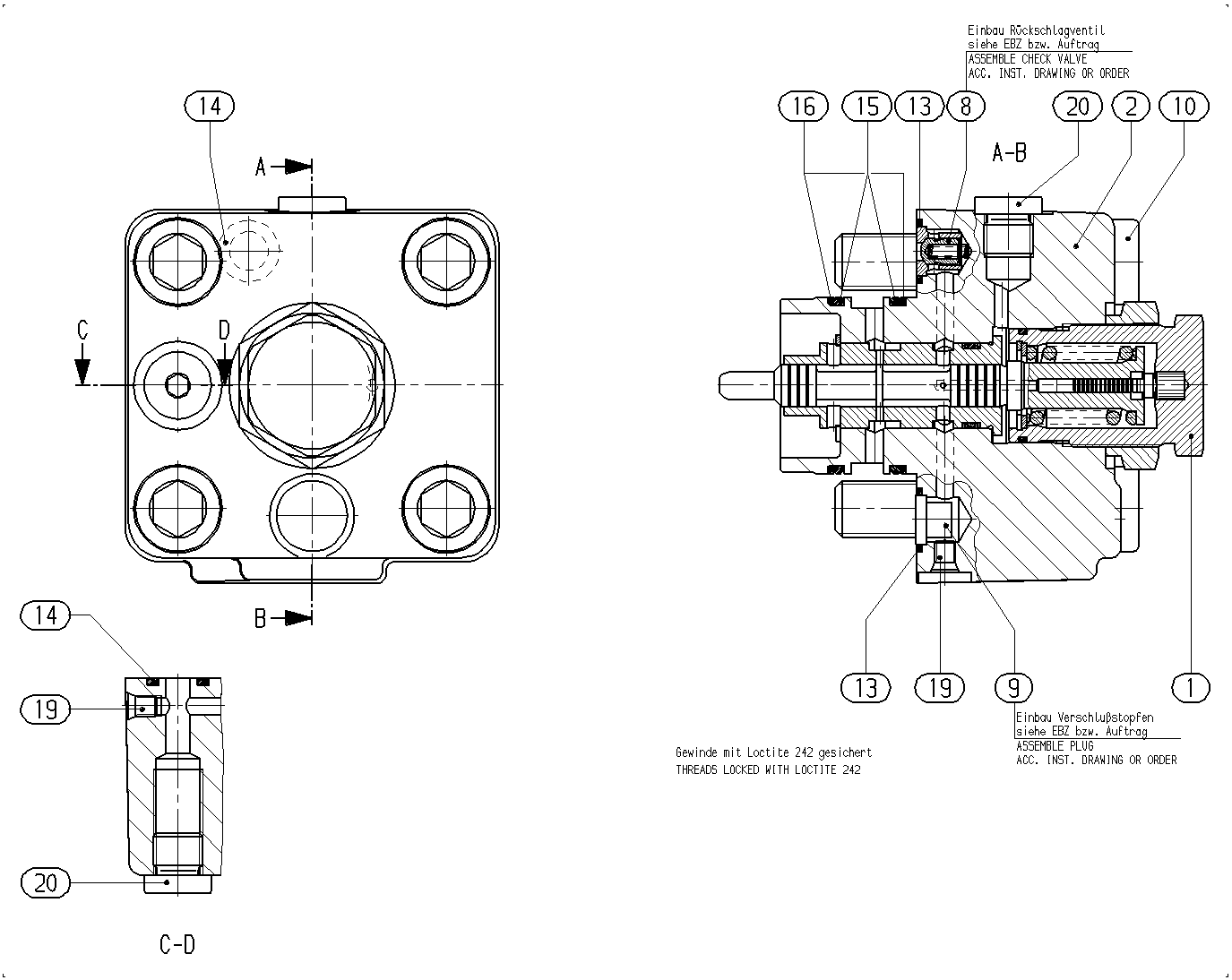

Assembly
CONTROL PARTR902411315
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902559863 | VALVE INSERT | 1 | ||
| R910930948 | CONTROL HOUSING | 1 | ||
| R910974659 | HY-CHECK VALVE | 1 | ||
| R902430575 | PLUG | 1 | ||
| R910126535 | SOCKET HEAD CAP SCREW | 4 | ||
| R910976410 | O-RING | 2 | ||
| R910518336 | O-RINGD | 3 | ||
| R910929855 | O-RINGD | 2 | ||
| R910929791 | BACKUP RINGD | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909153930 | SCREW PLUGD | 2 |
