Assembly

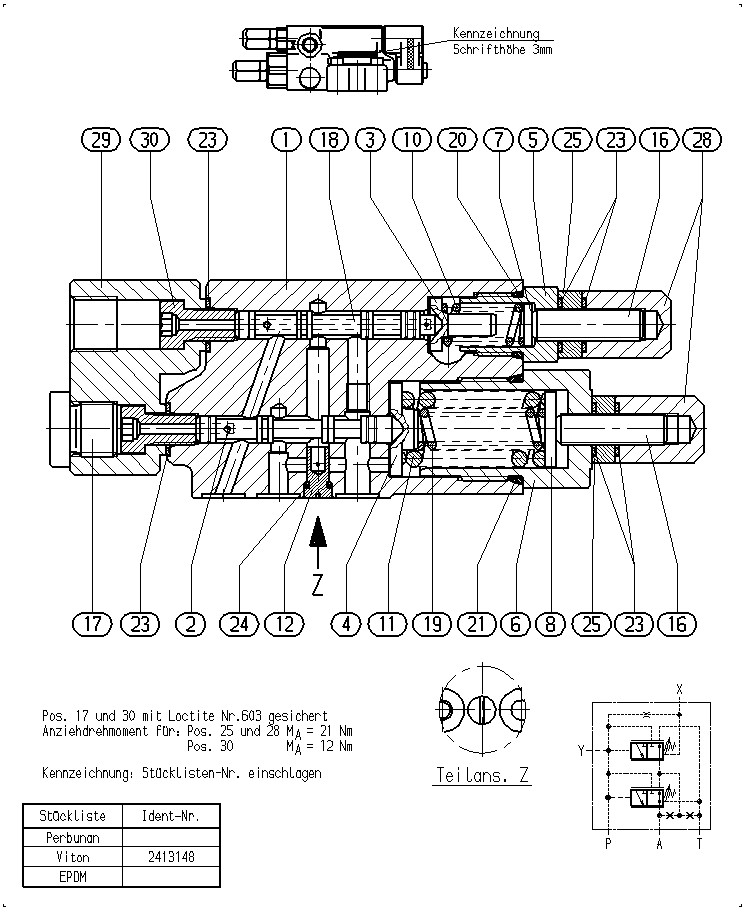

CONTROL VALVER902413148
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910961378 | VALVE HOUSING | 1 | ||
| R910900311 | VALVE SPOOL | 1 | ||
| R910920595 | SPRING DISK | 1 | ||
| R910707023 | SPRING DISK | 1 | ||
| R910935862 | SCREW PLUG | 1 | ||
| R910913809 | SCREW PLUG | 1 | ||
| R910900362 | WASHER | 1 | ||
| R910900389 | WASHER | 1 | ||
| R910920596 | COMPRESSION SPRING | 1 | ||
| R910707031 | COMPRESSION SPRING | 1 | ||
| R910930560 | ORIFICE | 1 | ||
| R910913807 | SETSCREW | 2 | ||
| R909153930 | SCREW PLUG | 1 | ||
| R910913047 | VALVE SPOOL | 1 | ||
| R910911509 | COMPRESSION SPRING | 1 | ||
| R910919314 | O-RINGD | 1 | ||
| R910919322 | O-RINGD | 1 | ||
| R910642827 | BONDED SEAL RINGD | 6 | ||
| R910976411 | O-RING | 1 | ||
| R910913806 | NUT | 2 | ||
| R910913805 | CAP NUT | 2 | ||
| R910972820 | DOUBLE ADAPTER | 1 | ||
| R910965426 | HOLLOW BOLTD | 2 |
