Assembly

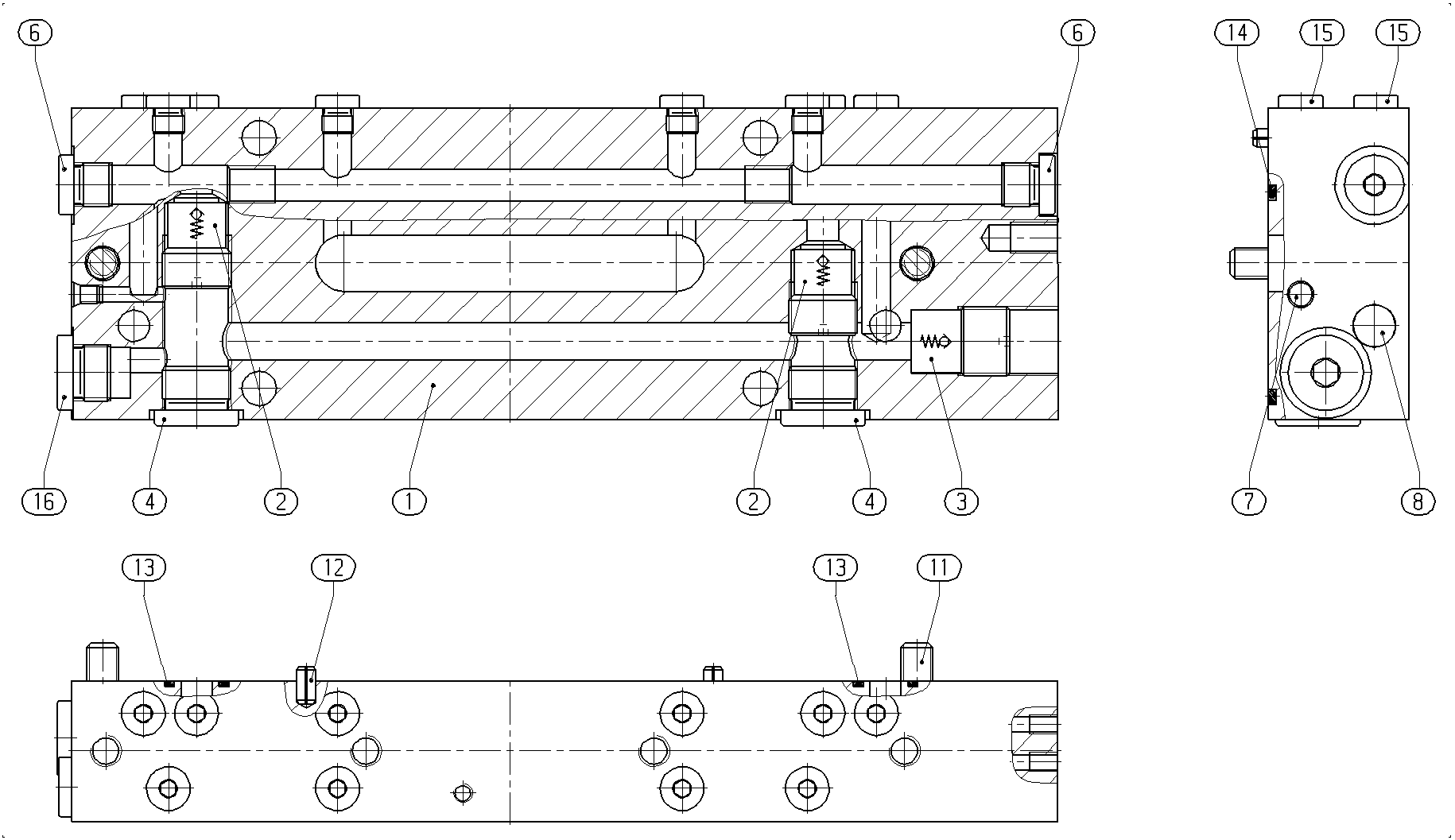

INTERMEDIATE PLATER902414050
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910984247 | INTERMEDIATE PLATE | 1 | ||
| R902650639 | CHECK VALVE | 2 | ||
| R910979807 | CHECK VALVE | 1 | ||
| R909156654 | SCREW PLUGD | 2 | ||
| R909153930 | SCREW PLUGD | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910938084 | DOUBLE BREAK-OFF PLUGD | 1 | ||
| R910120308 | SOCKET HEAD CAP SCREW | 2 | ||
| R900002645 | SLOTTED SPRING PIN | 2 | ||
| R910302139 | O-RINGD | 4 | ||
| R910919986 | O-RINGD | 1 | ||
| R909156649 | SCREW PLUGD | 10 | ||
| R909156651 | SCREW PLUG | 1 |
