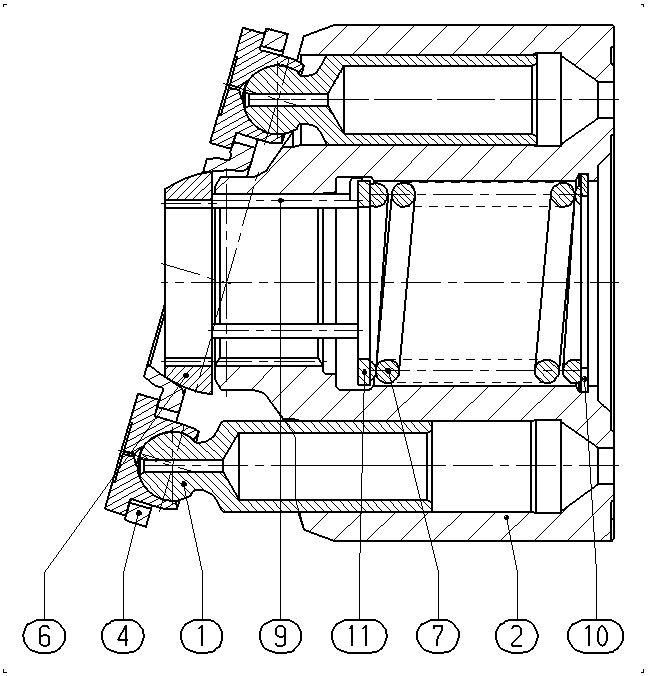

Assembly
ROTARY GROUPR902415586
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902418003 | PISTON PAD | 9 | ||
| R902420748 | CYLINDER | 1 | ||
| R910978875 | RETAINING PLATE | 1 | ||
| R902443450 | RETAINING BALL | 1 | ||
| R902438128 | COMPRESSION SPRING | 1 | ||
| R910906879 | PRESSURE PIN | 3 | ||
| R910791555 | V-RING | 1 | ||
| R910906880 | SUPPORTING DISC | 1 |
