Assembly

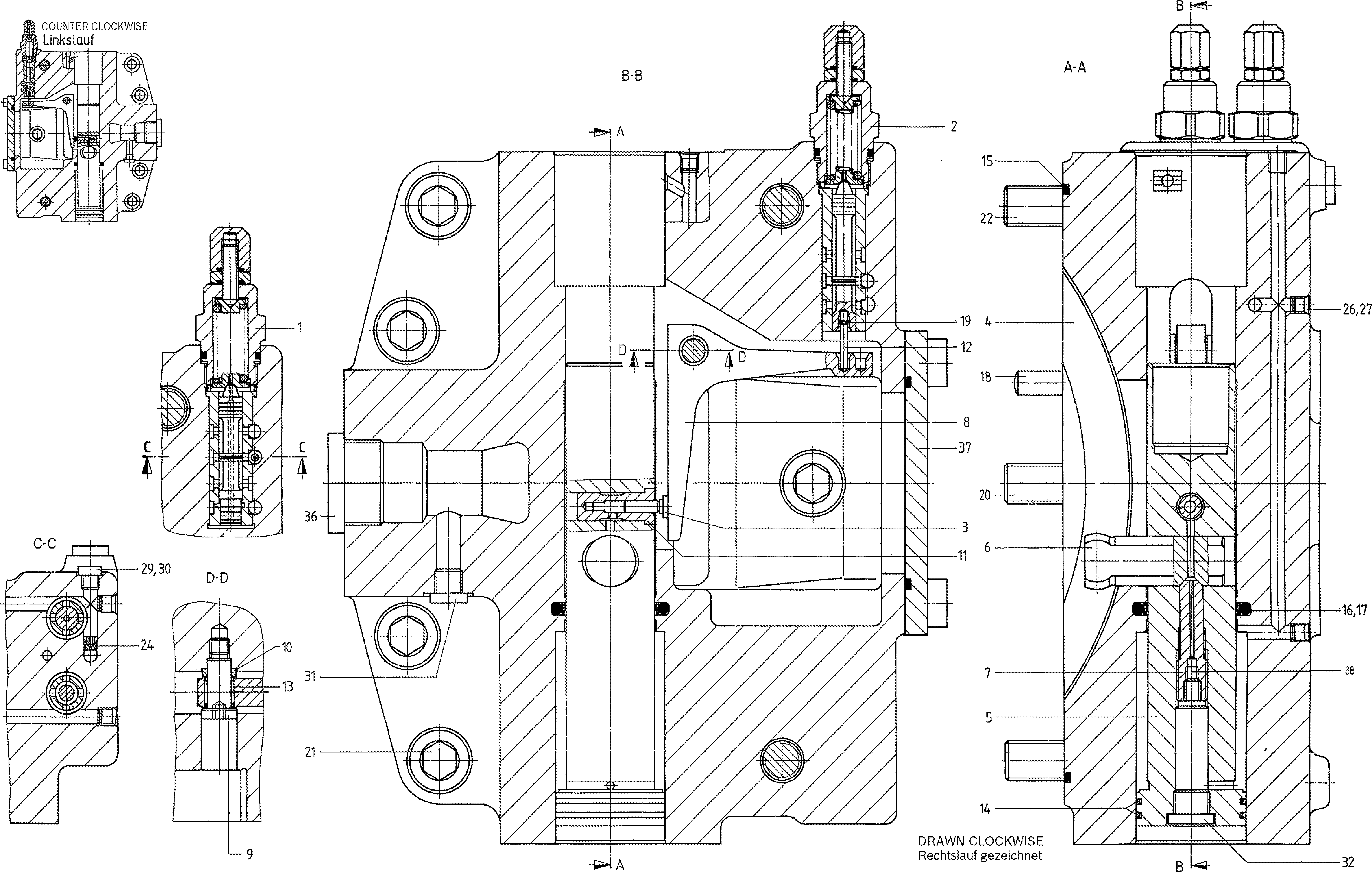

ADJUSTING PIECER902415892
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902533145 | VALVE INSERT | 1 | ||
| R910942896 | VALVE INSERT | 1 | ||
| R902541214 | PISTON PAD | 1 | ||
| R902415883 | COVER PLATE | 1 | ||
| R902538866 | POSITIONING PISTON | 1 | ||
| R902414506 | POSITIONING STUD | 1 | ||
| R902538789 | SETSCREW | 1 | ||
| R910940900 | LEVER | 1 | ||
| R910921037 | STUD BOLT | 1 | ||
| R910912065 | WASHER | 1 | ||
| R910997327 | BUSHING | 1 | ||
| R910940939 | CONNECTING ROD | 1 | ||
| R910909603 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R910907604 | RECTANGULAR RINGD | 2 | ||
| R910801399 | O-RINGD | 1 | ||
| R910916878 | ROD SEALD | 1 | ||
| R910916880 | O-RINGD | 1 | ||
| R910517895 | STRAIGHT PIN | 2 | ||
| R910916200 | O-RINGD | 1 | ||
| R910277746 | SOCKET HEAD CAP SCREW | 1 | ||
| R902572931 | SOCKET HEAD CAP SCREW | 4 | ||
| R910924900 | SOCKET HEAD CAP SCREW | 2 | ||
| R910836761 | NOZZLE | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909156863 | SCREW PLUGD | 2 | ||
| R909156650 | SCREW PLUGD | 1 | ||
| R909153930 | SCREW PLUGD | 2 | ||
| R909156651 | SCREW PLUGD | 1 | ||
| R910942229 | SCREW PLUG | 1 | ||
| R910969710 | BLANK FLANGE Assembly parts list →L | 1 | ||
| R909156493 | NOZZLE | 1 |
