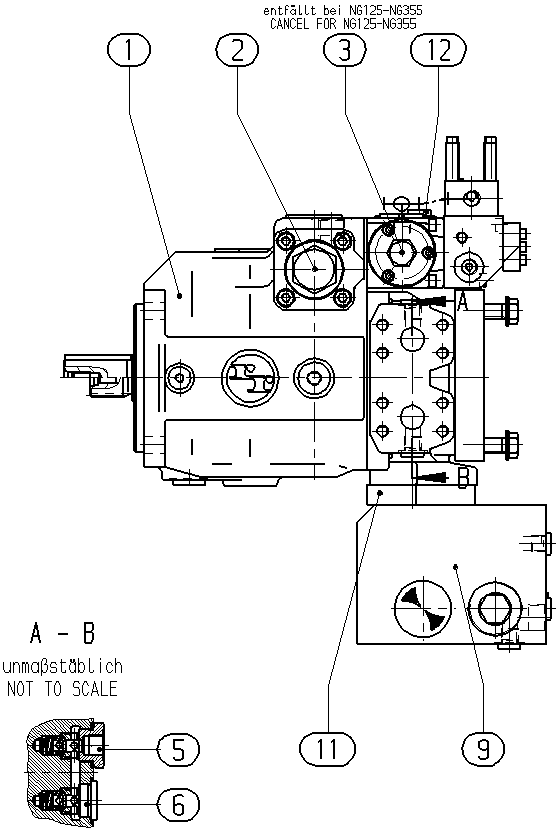

Assembly
AXIAL-PISTON PUMPR902417508
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902417460 | BASE UNIT Assembly parts list →L | 1 | ||
| R902434040 | CONTROL Assembly parts list →L | 1 | ||
| R910920957 | SPRING PACK Assembly parts list →L | 1 | ||
| R910953539 | VALVE MOUNTING KIT | 1 | ||
| R910953628 | VALVE MOUNTING KIT | 1 | ||
| R910985443 | VALVE BLOCK Assembly parts list →L | 1 | ||
| R902420155 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R909151979 | SCREW PLUG | 1 | ||
| 32 | R902479200 | COVER Assembly parts list →L | 1 | |
| 61 | R902805707 | SHIPPING PROTECTION | 2 | |
| 62 | R902602011 | SEAL SCREW | 1 | |
| 64 | R902602010 | SEAL SCREW | 1 | |
| 65 | R902602011 | SEAL SCREW | 1 | |
| 71 | R902430609 | FLANGE COVER Assembly parts list →L | 1 | |
| 81 | R902602008 | SEAL SCREW | 1 |
