Assembly

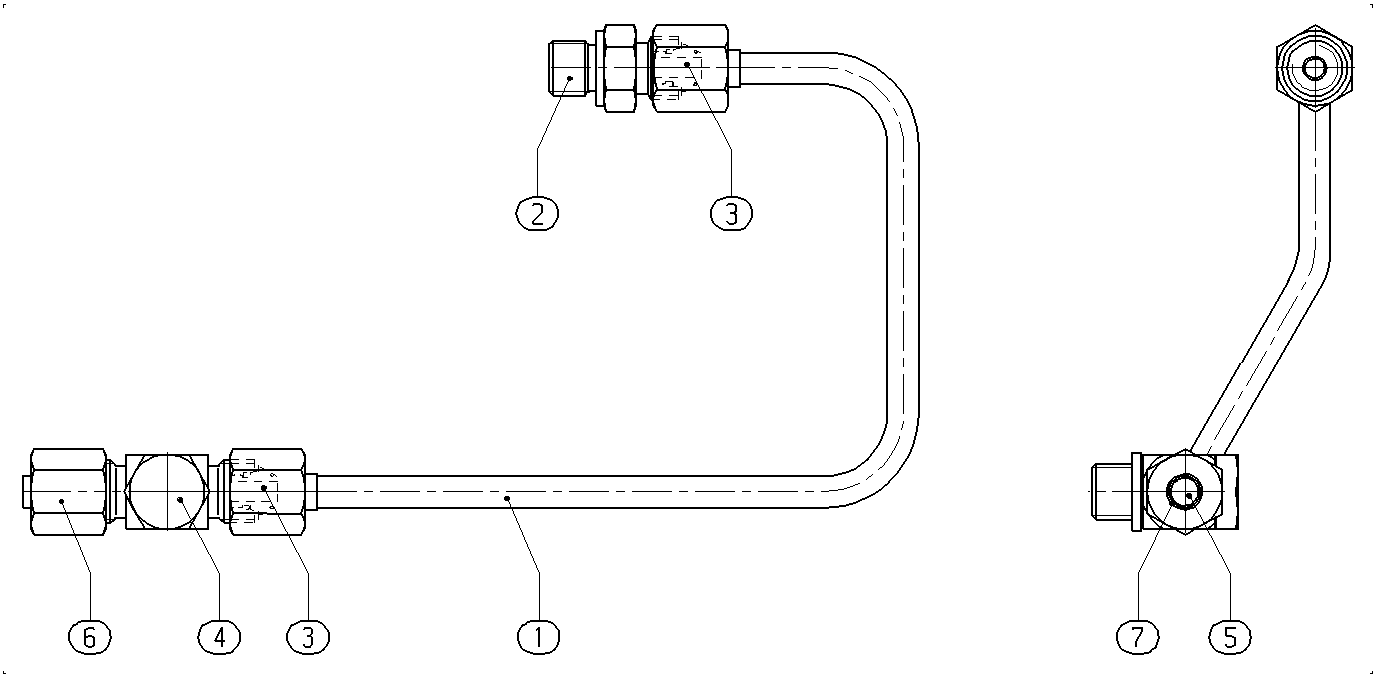

PIPINGR902418900
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902418670 | PIPE Assembly parts list →L | 1 | ||
| R910960552 | MALE CONNECTOR | 1 | ||
| R910948774 | INTERMEDIATE RING | 2 | ||
| R910963661 | THREADED FASTENER | 1 | ||
| R910723126 | PLUG | 1 | ||
| R910960554 | UNION NUT | 1 | ||
| R910947703 | SLEEVE | 1 |
