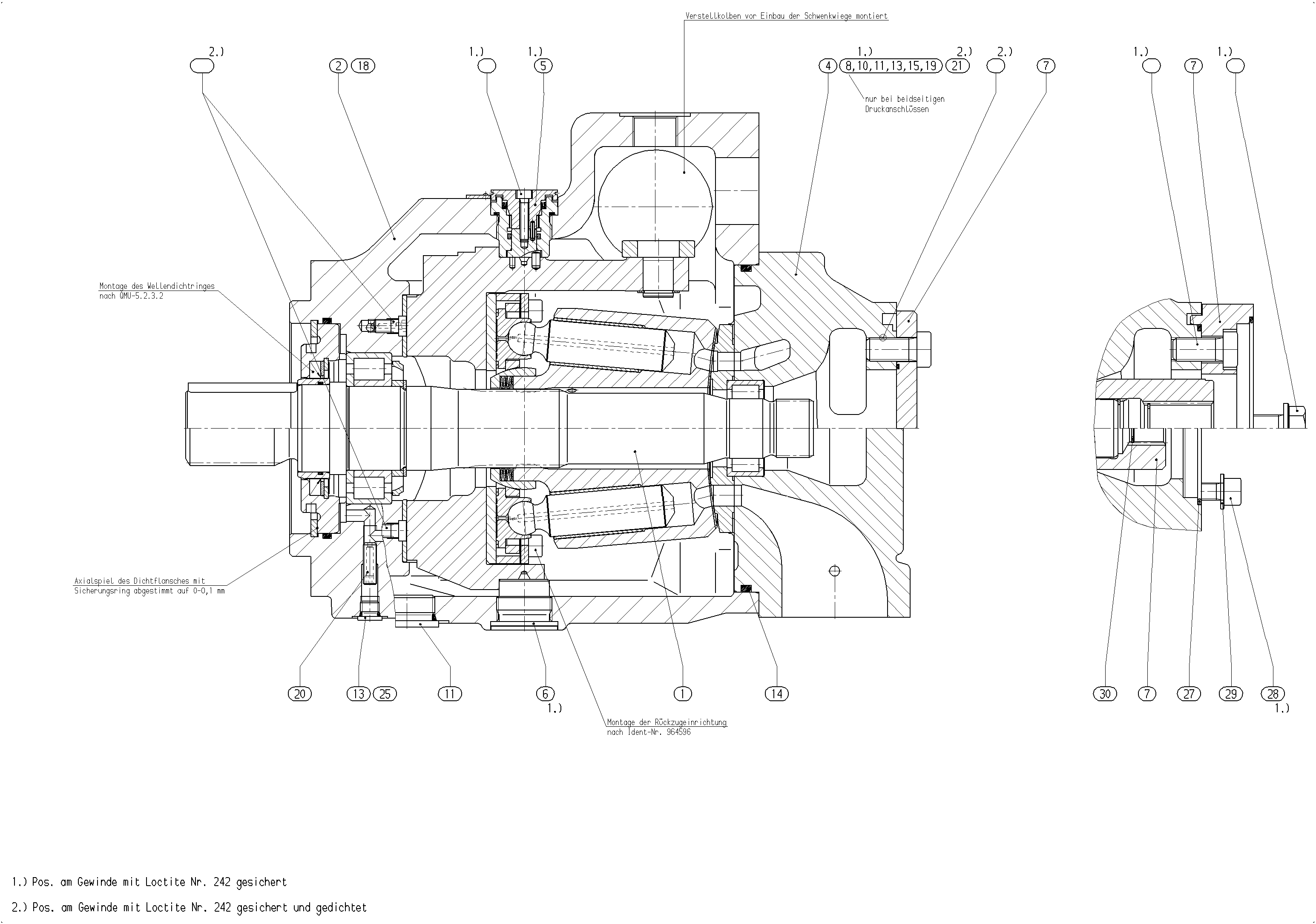

Assembly
BASE UNITR902419272
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910996499 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910996492 | PUMP HOUSING | 1 | ||
| R910940161 | CONNECTION PLATE | 1 | ||
| R910993575 | INDICATING DEVICE Assembly parts list →L | 1 | ||
| R910798355 | STUD BOLT Assembly parts list →L | 1 | ||
| R910940162 | ATTACHMENT KIT Assembly parts list →L | 1 | ||
| R910209228 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153378 | SCREW PLUGD | 4 | ||
| R909154478 | SCREW PLUGD | 3 | ||
| R910783854 | O-RINGD | 1 | ||
| R910942134 | R-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910987283 | THROTTLE SCREW | 1 | ||
| R910922276 | NOZZLE | 1 | ||
| R910979852 | REFERENCE PLATE | 1 |
