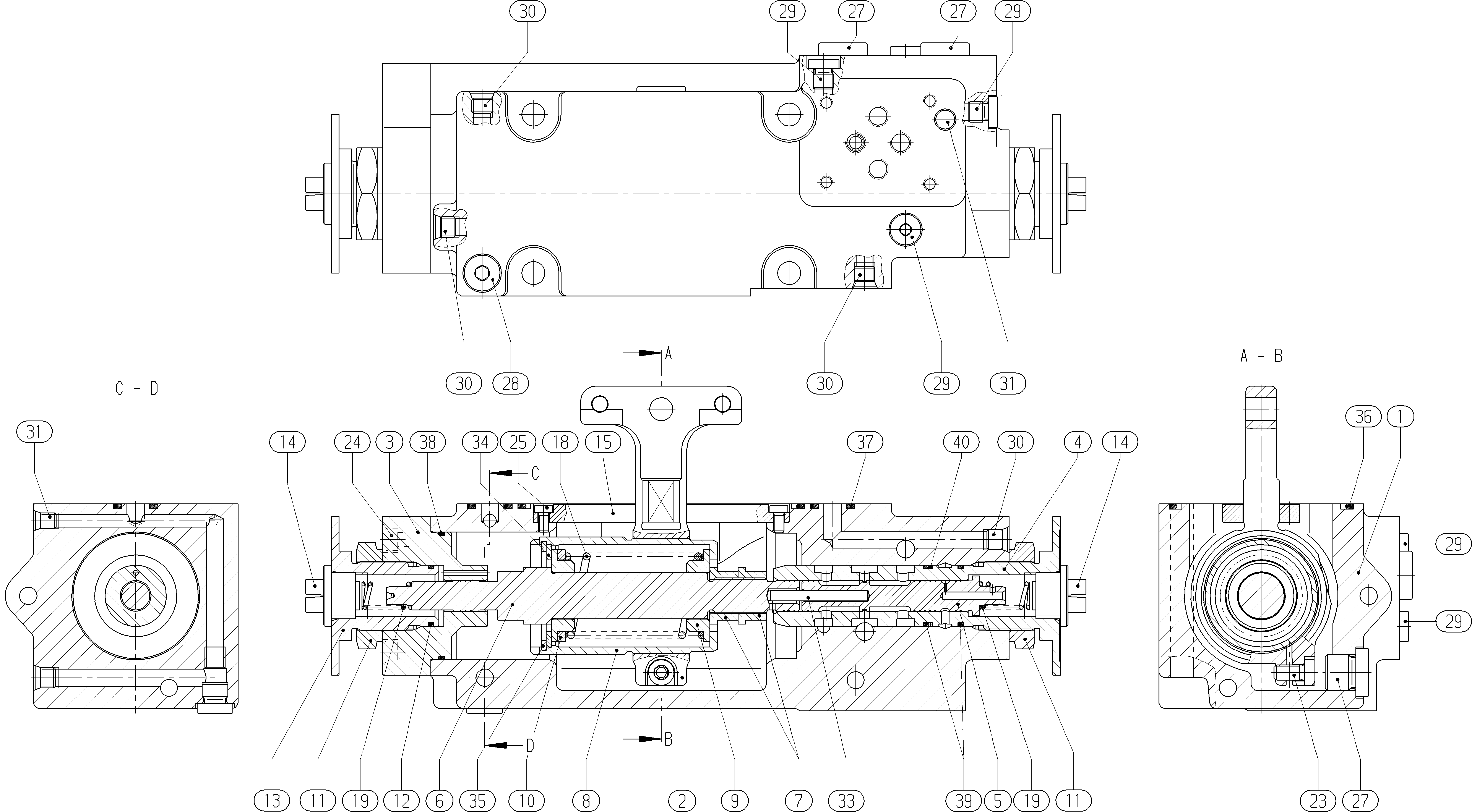

Assembly
CONTROL MODULER902423143
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910986450 | CONTROL HOUSING | 1 | ||
| R910986697 | LEVER | 1 | ||
| R902418762 | CONTROL COVER | 1 | ||
| R902413550 | CONTROL SLEEVE | 1 | ||
| R902531128 | CONTROL PISTON | 1 | ||
| R902531130 | PRESSURE PISTON | 1 | ||
| R902403721 | NUT | 2 | ||
| R910986816 | SPRING SLEEV | 1 | ||
| R910959014 | SPRING SLEEV | 2 | ||
| R910958999 | ADJUSTMENT SHIM | 1 | ||
| R910986530 | NUT | 2 | ||
| R910609994 | O-RING | 1 | ||
| R902418764 | THREADED FASTENER | 1 | ||
| R902602010 | SEAL SCREW | 2 | ||
| R910986500 | PARALLEL KEY | 2 | ||
| R902428005 | COMPRESSION SPRING | 1 | ||
| R902420483 | COMPRESSION SPRING | 2 | ||
| R910436437 | SOCKET HEAD CAP SCREW | 1 | ||
| R910120111 | SOCKET HEAD CAP SCREW | 4 | ||
| R910121185 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153930 | SCREW PLUGD | 3 | ||
| R909156649 | SCREW PLUG | 1 | ||
| R909156863 | SCREW PLUGD | 5 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R913031014 | NEEDLE-ROLLER | 1 | ||
| R910105457 | SUPPORTING DISC | 1 | ||
| R910105988 | RETAINING RING | 1 | ||
| R910988241 | O-RINGD | 1 | ||
| R910518336 | O-RING | 2 | ||
| R910910193 | O-RINGD | 1 | ||
| R910609994 | O-RING | 2 | ||
| R910931328 | BACKUP RING | 1 |
