Assembly

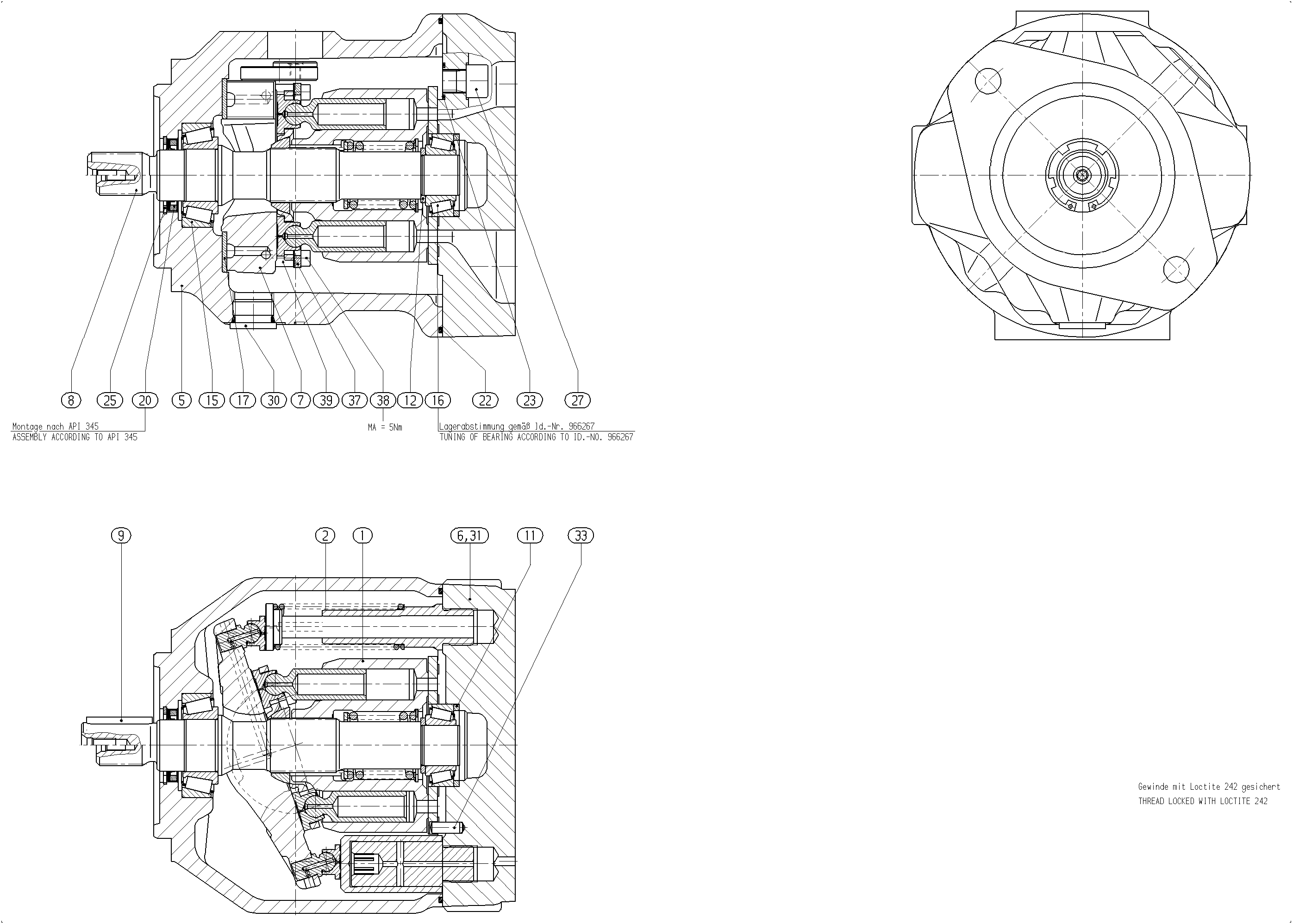

BASE UNITR902425121
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902425096 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910910852 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902546051 | PUMP HOUSING | 1 | ||
| R902420167 | CONNECTION PLATE | 1 | ||
| R902424415 | SWASH PLATE | 1 | ||
| R902417380 | DRIVE SHAFT | 1 | ||
| R910749265 | PARALLEL KEY | 1 | ||
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R910900198 | BEARING SHELL | 2 | ||
| R910916104 | SHAFT SEALING RINGD | 1 | ||
| R910793698 | O-RINGD | 1 | ||
| R913052111 | R-RINGD | 4 | ||
| R902403814 | RETAINING RING | 1 | ||
| R910220264 | SOCKET HEAD CAP SCREW | 4 | ||
| R910967343 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R902424413 | SEGMENT | 2 | ||
| R913001593 | SOCKET HEAD CAP SCREW | 4 | ||
| R902424411 | SPACER SLEEVE | 4 |
