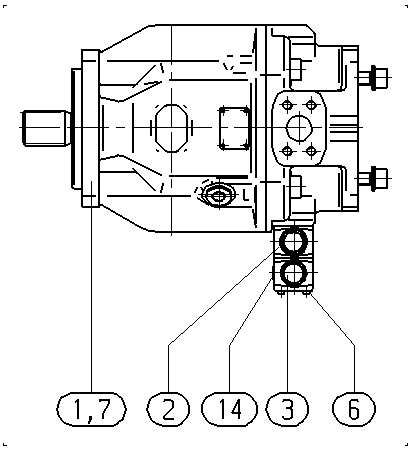

Assembly
AXIAL-PISTON PUMPR902425353
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902424797 | BASE UNIT Assembly parts list →L | 1 | ||
| R902480084 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902480083 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910799998 | SOCKET HEAD CAP SCREW | 4 | ||
| R902439268 | SIDE MARKER RING | 1 | ||
| R909157039 | SCREW PLUG | 1 | ||
| 70 | R902421946 | SHIPPING PROTECTION | 1 | |
| 71 | R902421950 | SHIPPING PROTECTION | 1 | |
| 72 | R902603191 | SEAL SCREW | 1 | |
| 73 | R902602015 | SEAL SCREW | 1 | |
| 74 | R902602979 | FLANGE COVER | 1 | |
| 75 | R909830326 | NAMEPLATE | 1 |
