Assembly

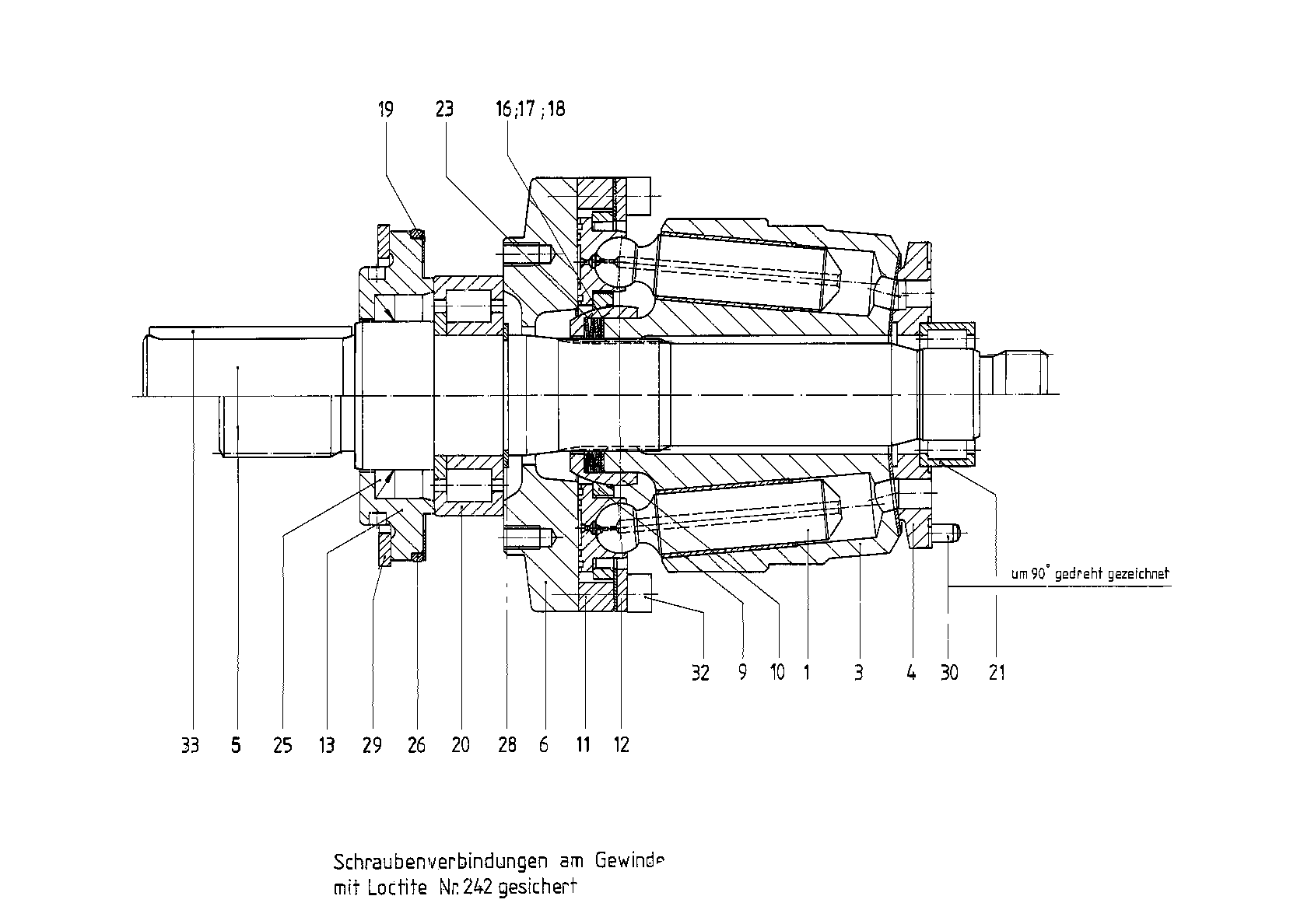

ROTARY GROUPR902425393
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902400682 | PISTON PAD | 9 | |
| R909440195 | CYLINDER | 1 | ||
| 4 | R910942042 | DISTRIBUTOR PLATE | 1 | |
| R902409237 | DRIVE SHAFT | 1 | ||
| 6 | R910997871 | CAM PLATE | 1 | |
| R910765198 | RETAINING PLATE | 1 | ||
| 10 | R909426456 | RETAINING BALL | 1 | |
| 11 | R910960663 | SPACER SEGMENT | 2 | |
| R910918786 | SEGMENT | 2 | ||
| 13 | R910902360 | SEALING FLANGE | 1 | |
| 16 | R909400444 | SHIM RING | 2 | |
| 17 | R909408057 | SHIM RING | 2 | |
| 18 | R910829277 | SHIM RING | 2 | |
| 19 | R910444677 | SHIM RING | 1 | |
| 20 | R910960736 | CYL. ROLLER BEARING | 1 | |
| 21 | R910755435 | CYL. ROLLER BEARING | 1 | |
| R909400441 | CUP-SPRING STACK | 1 | ||
| R910928941 | SHAFT SEALING RINGD | 1 | ||
| 26 | R910640182 | O-RINGD | 1 | |
| 28 | R910105813 | RETAINING RING | 1 | |
| 29 | R910189057 | RETAINING RING | 1 | |
| 30 | R913000824 | STRAIGHT PIN | 1 | |
| R902650863 | SOCKET HEAD CAP SCREW | 4 | ||
| R910923559 | PARALLEL KEY | 1 |
