Assembly

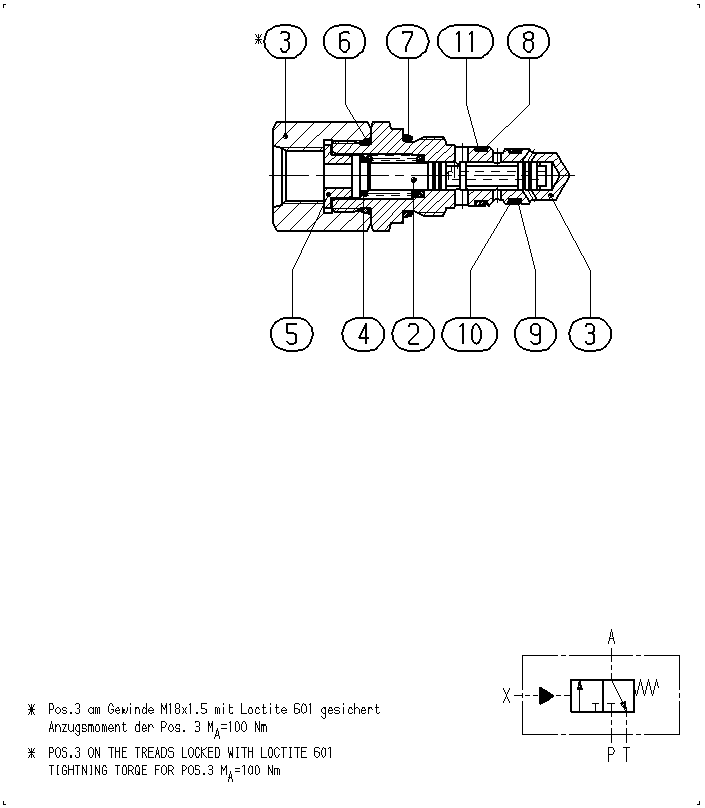

DIRECTIONAL-CONTROL VALVER902426124
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910927436 | VALVE INSERT | 1 | |
| R910919743 | VALVE SPOOL | 1 | ||
| R902426101 | UNION NUT | 1 | ||
| R910919744 | COMPRESSION SPRING | 1 | ||
| R910927434 | STOP RING | 1 | ||
| R910930792 | O-RINGD | 1 | ||
| R910764736 | O-RINGD | 1 | ||
| R910942850 | O-RINGD | 1 | ||
| R910942851 | O-RINGD | 1 | ||
| R910919750 | BACKUP RINGD | 1 | ||
| R910919751 | BACKUP RINGD | 1 |
