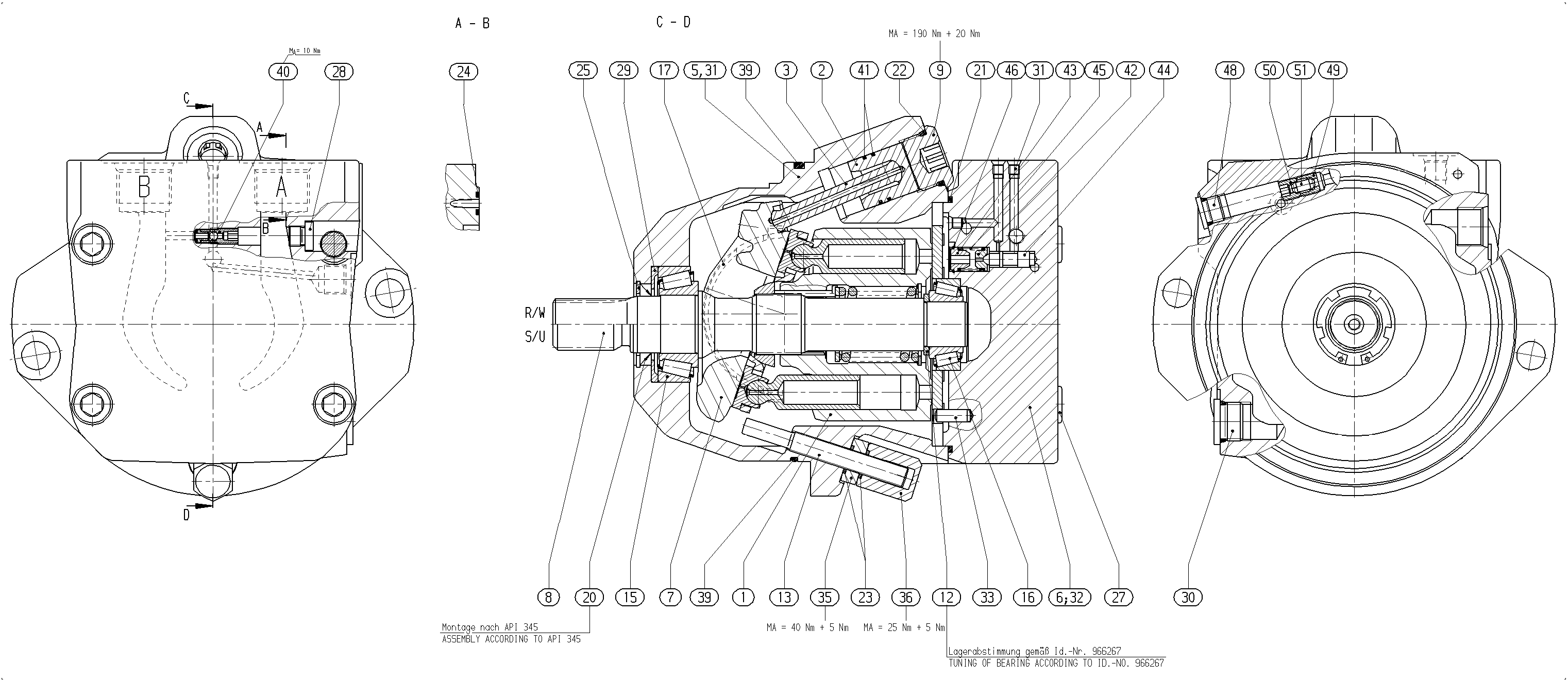

Assembly
BASE UNITR902426376
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902435770 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910979311 | ADJUSTING PISTON | 1 | ||
| R902439068 | PISTON ROD | 1 | ||
| R902425709 | MOTOR HOUSING | 1 | ||
| R902425691 | CONNECTION PLATE | 1 | ||
| R902443505 | SWASH PLATE | 1 | ||
| R902408467 | DRIVE SHAFT | 1 | ||
| R902447575 | SCREW PLUG Assembly parts list →L | 1 | ||
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R910933408 | STOP SCREW | 1 | ||
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R910933792 | BEARING SHELL | 2 | ||
| R910985471 | SHAFT SEALING RINGD | 1 | ||
| R913052048 | O-RINGD | 1 | ||
| R910804886 | O-RINGD | 2 | ||
| R910942133 | R-RING | 1 | ||
| R902403814 | RETAINING RING | 1 | ||
| R910110256 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156649 | SCREW PLUG | 1 | ||
| R910987963 | STOP RING | 1 | ||
| R910901969 | SCREW PLUGD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910989983 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R910998240 | NUT | 1 | ||
| R910961839 | CAP NUT | 1 | ||
| R902601553 | O-RING | 1 | ||
| R902424169 | SHUTTLE VALVE Assembly parts list →L | 1 | ||
| R902650529 | R-RING | 2 | ||
| R909426138 | SPRING DISK | 1 | ||
| R910987354 | SPRING DISK | 1 | ||
| R909426137 | CONTROL PISTON | 1 | ||
| R909432802 | COMPRESSION SPRING | 1 | ||
| R910987573 | SNAP RING | 1 | ||
| R902650493 | SCREW PLUG | 1 | ||
| R909400263 | THROTTLE SCREW | 1 | ||
| R909400264 | THROTTLE SCREW | 1 | ||
| R909400262 | THROTTLE PIN | 1 |
