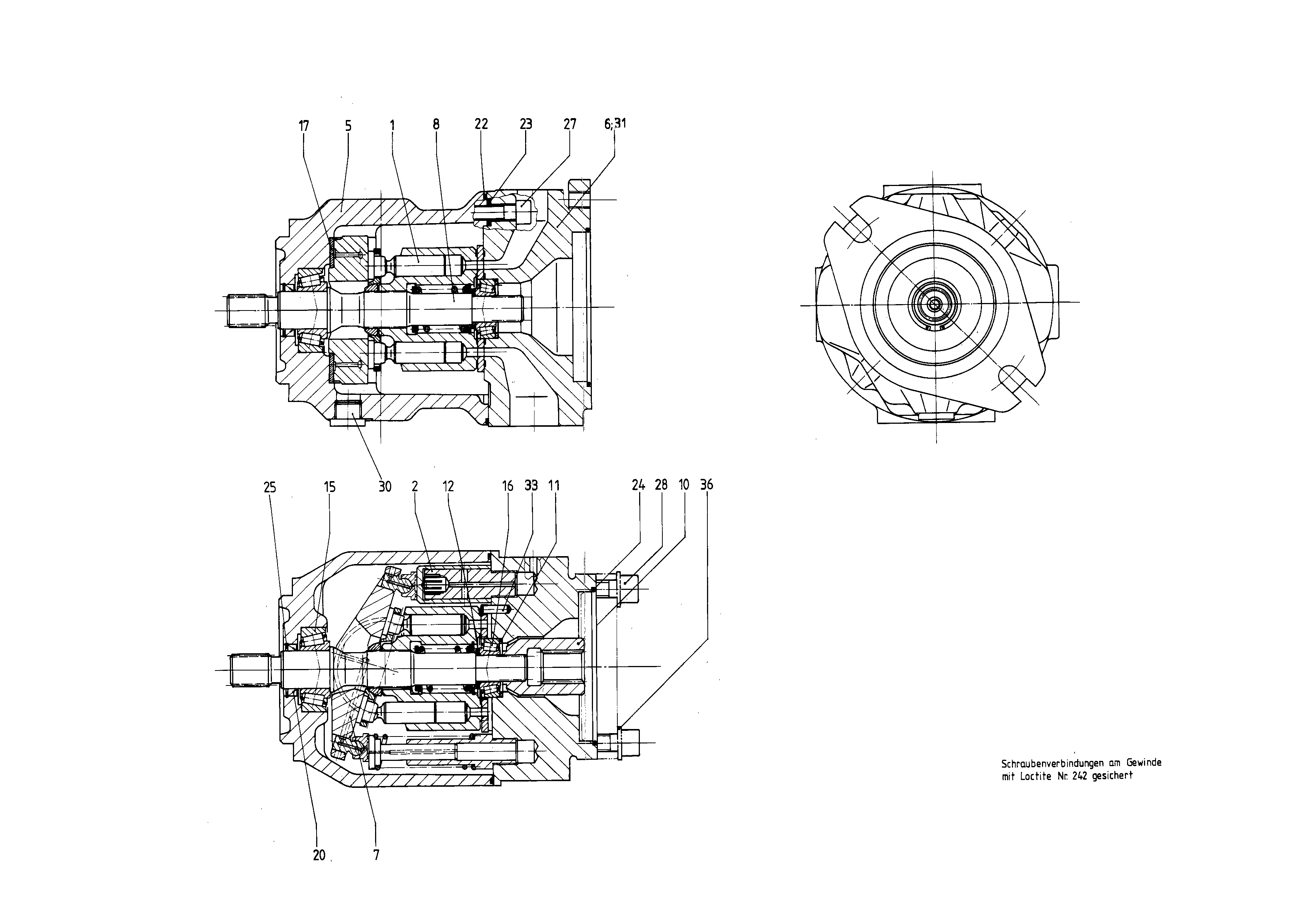

Assembly
BASE UNITR902427141
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902439596 | ROTARY GROUP Assembly parts list →L | 1 | |
| R910911162 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902550217 | PUMP HOUSING | 1 | ||
| 6 | R902404358 | CONNECTION PLATE | 1 | |
| R910960999 | SWASH PLATE | 1 | ||
| 8 | R902417369 | DRIVE SHAFT | 1 | |
| 10 | R910986299 | SPLINED COUPLING | 1 | |
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| 15 | R902438109 | TAPERED-ROLLER BEARING | 1 | |
| 16 | R902438110 | TAPERED-ROLLER BEARING | 1 | |
| 17 | R910902778 | BEARING SHELL | 2 | |
| R910794325 | SHAFT SEALING RINGD | 1 | ||
| R910976090 | O-RINGD | 1 | ||
| R913052104 | R-RINGD | 4 | ||
| 24 | R910357049 | O-RINGD | 1 | |
| 25 | R902403815 | RETAINING RING | 1 | |
| R910110191 | SOCKET HEAD CAP SCREW | 4 | ||
| R910901969 | SCREW PLUGD | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| 33 | R902533908 | STRAIGHT PIN | 1 |
