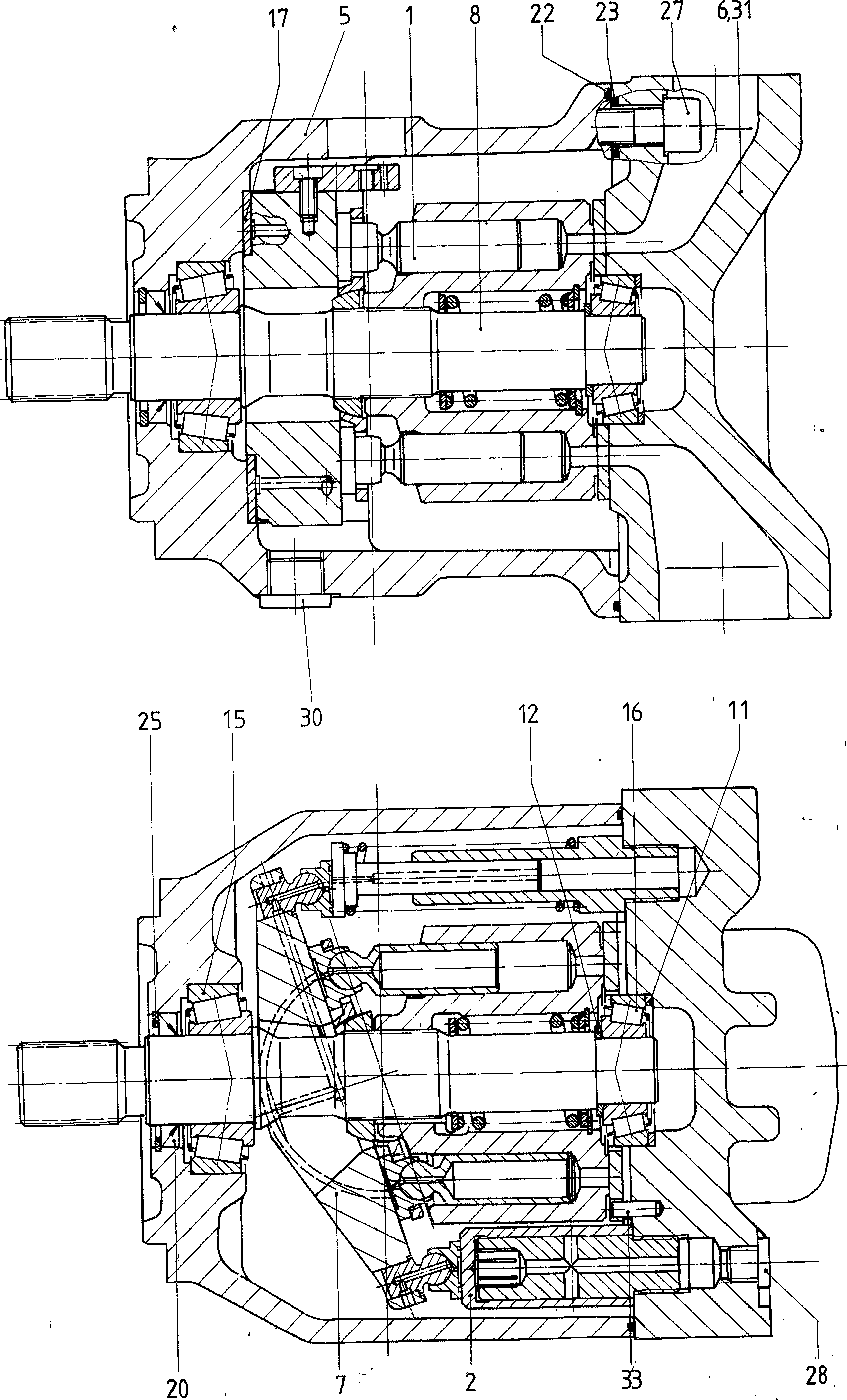

Assembly
BASE UNITR902428126
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910956007 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R910965404 | ADJUSTING PIECE Assembly parts list →L | 1 | |
| 5 | R910917320 | PUMP HOUSING | 1 | |
| 6 | R902428098 | CONNECTION PLATE | 1 | |
| 7 | R910961022 | SWASH PLATE | 1 | |
| 8 | R902412023 | DRIVE SHAFT | 1 | |
| R910939005 | ADJUSTMENT SHIM | 1 | ||
| R910720224 | TAPERED-ROLLER BEARING | 1 | ||
| R910720232 | TAPERED-ROLLER BEARING | 1 | ||
| R910902777 | BEARING SHELL | 2 | ||
| R910764701 | SHAFT SEALING RINGD | 1 | ||
| 22 | R910720194 | O-RINGD | 1 | |
| R913052118 | R-RINGD | 4 | ||
| R910941918 | RETAINING RING | 1 | ||
| 27 | R910110272 | SOCKET HEAD CAP SCREW | 4 | |
| R909151979 | SCREW PLUGD | 2 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| 33 | R902533908 | STRAIGHT PIN | 1 |
