Assembly

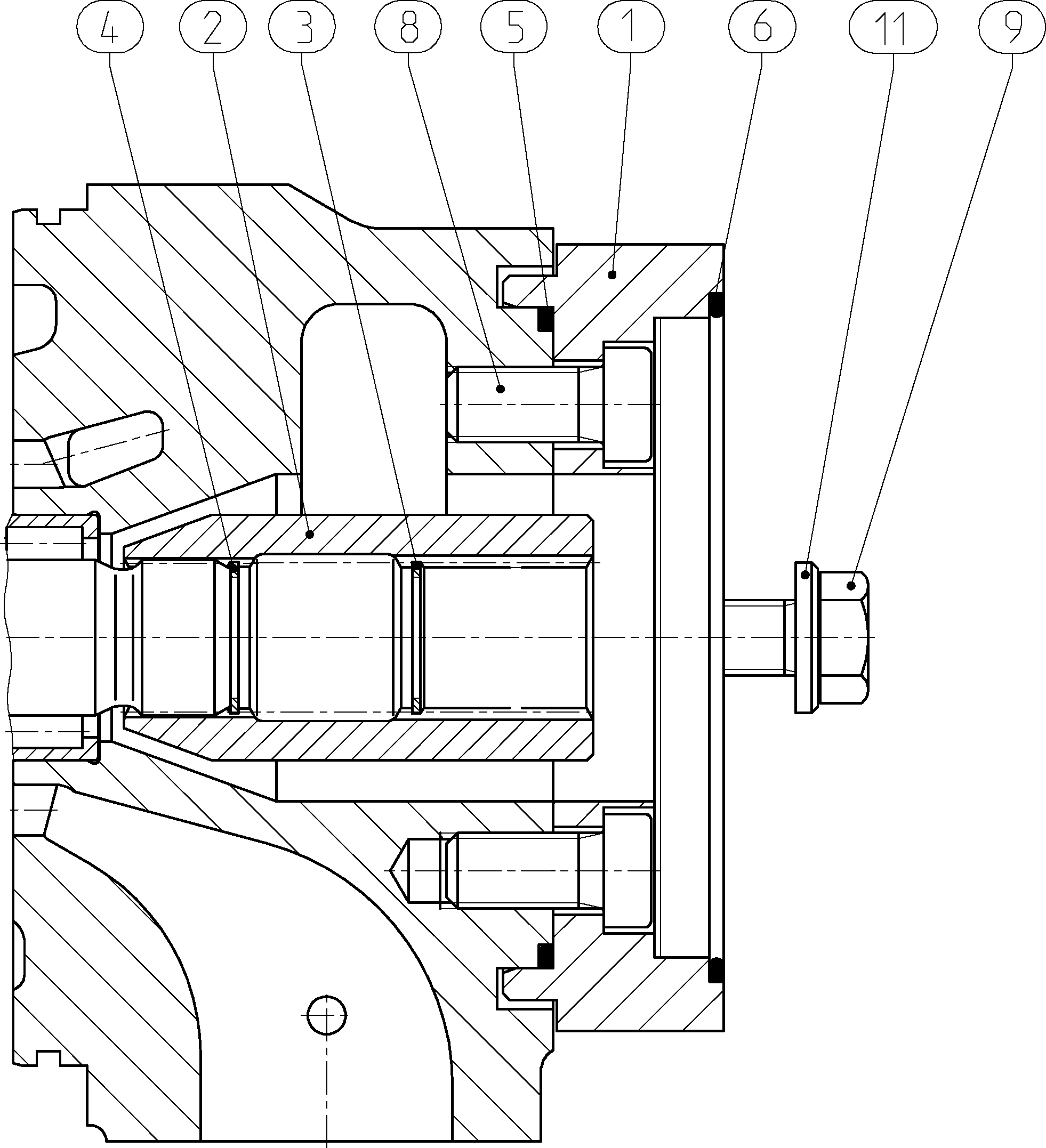

ATTACHMENT KITR902429508
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902420804 | INTERMEDIATE FLANGE | 1 | ||
| R910995684 | SPLINED COUPLING | 1 | ||
| R910150533 | RETAINING RING | 1 | ||
| R910150533 | RETAINING RING | 1 | ||
| R910186945 | O-RINGD | 1 | ||
| R910640182 | O-RINGD | 1 | ||
| R910714917 | SOCKET HEAD CAP SCREW | 4 | ||
| R910104914 | HEXAGON SCREW | 2 | ||
| R902650190 | WASHER | 2 |
