Assembly

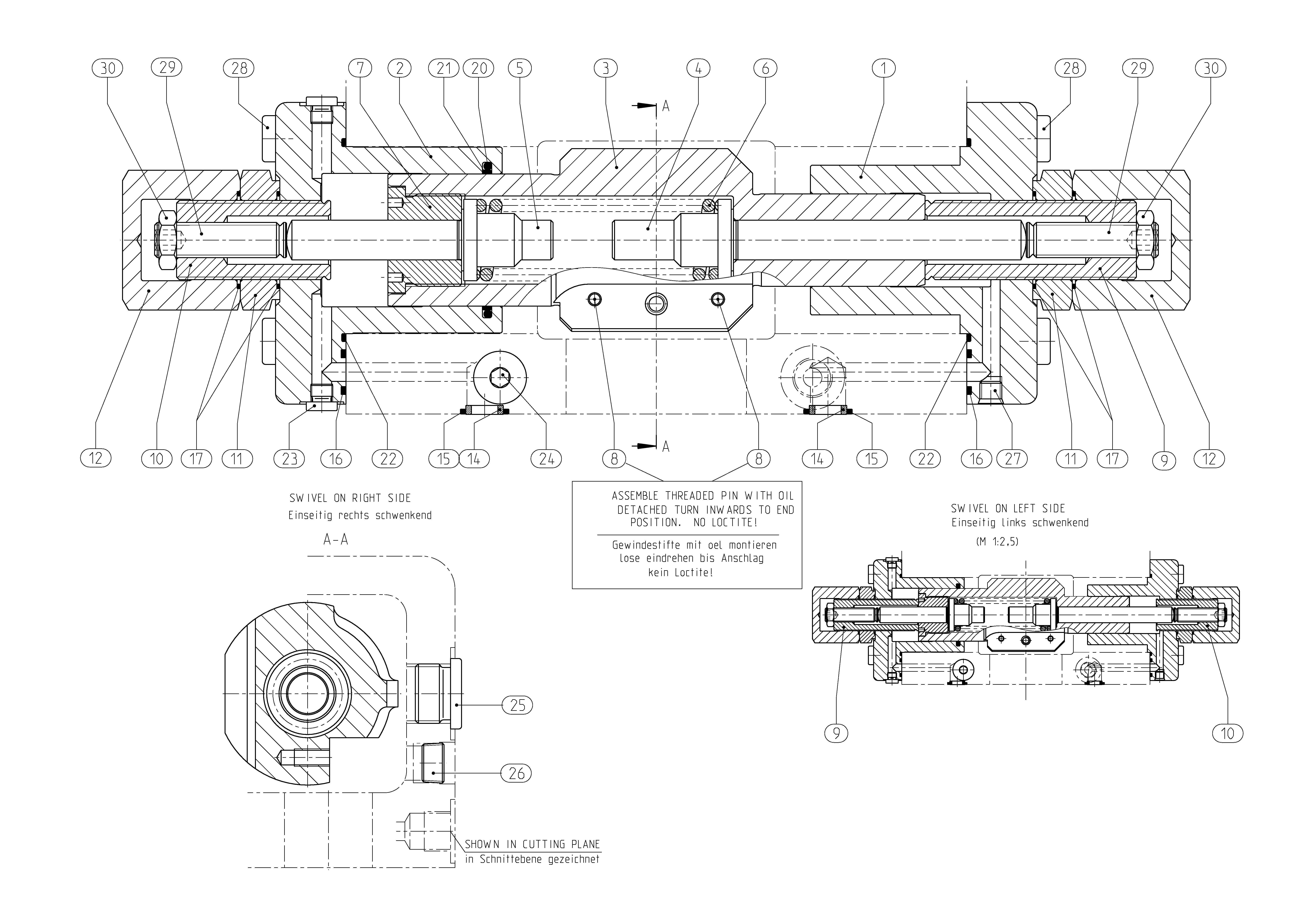

ADJUSTING PIECER902430402
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910945727 | PISTON HOUSING | 1 | ||
| R910945721 | PISTON HOUSING | 1 | ||
| R902530758 | ADJUSTING PISTON | 1 | ||
| R902557759 | PRESSURE PISTON | 1 | ||
| R902557760 | PRESSURE PISTON | 1 | ||
| R910900077 | COMPRESSION SPRING | 1 | ||
| R902519845 | PISTON GUIDE | 1 | ||
| R902519612 | STOP SCREW | 1 | ||
| R902519601 | STOP SCREW | 1 | ||
| R910902827 | NUT | 2 | ||
| R910902828 | CAP NUT | 2 | ||
| R910978693 | SEAL RING | 2 | ||
| R910515574 | O-RINGD | 2 | ||
| R910923835 | R-RINGD | 2 | ||
| R910904055 | O-RINGD | 4 | ||
| R910473227 | O-RING | 1 | ||
| R902650982 | DUMMY | 1 | ||
| R902650324 | R-RINGD | 2 | ||
| R909156649 | SCREW PLUG | 4 | ||
| R909156651 | SCREW PLUG | 1 | ||
| R909156984 | SCREW PLUGD | 1 | ||
| R910987526 | SCREW PLUG | 1 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910604976 | SOCKET HEAD CAP SCREW | 8 | ||
| R902519537 | STUD BOLT | 2 | ||
| R910127116 | HEXAGON NUT | 2 |
