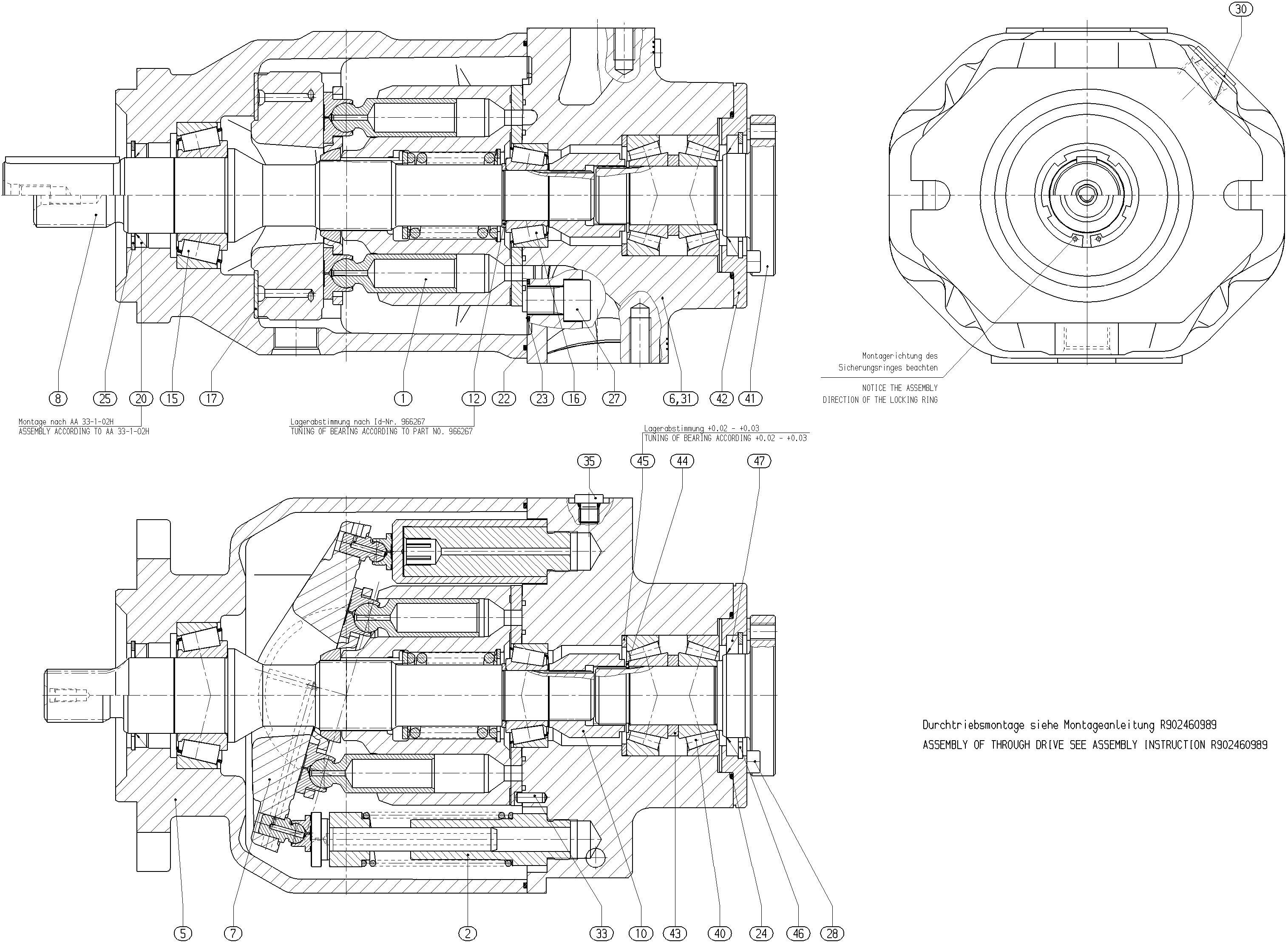

Assembly
BASE UNITR902430518
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910937176 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910913785 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910906803 | PUMP HOUSING | 1 | ||
| R902433313 | CONNECTION PLATE | 1 | ||
| R910961050 | SWASH PLATE Assembly parts list →L | 1 | ||
| R910993523 | DRIVE SHAFT | 1 | ||
| R902430501 | SPLINED COUPLING | 1 | ||
| R910906878 | ADJUSTMENT SHIM | 1 | ||
| R910906908 | TAPERED-ROLLER BEARING | 1 | ||
| R910906909 | TAPERED-ROLLER BEARING | 1 | ||
| R910906881 | BEARING SHELL | 2 | ||
| R910113174 | SHAFT SEALING RINGD | 1 | ||
| R910912756 | O-RINGD | 1 | ||
| R913050578 | R-RINGD | 4 | ||
| R910404209 | O-RING | 1 | ||
| R909832149 | RETAINING RING | 1 | ||
| R910389714 | SOCKET HEAD CAP SCREW | 4 | ||
| R910109452 | SOCKET HEAD CAP SCREW | 4 | ||
| R910967351 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R909157039 | SCREW PLUG | 2 | ||
| R910918201 | TAPERED-ROLLER BEARING | 2 | ||
| R902421558 | THROUGH DRIVE | 1 | ||
| R902424632 | COVER | 1 | ||
| R902421561 | ADJUSTMENT SHIM | 1 | ||
| R909083360 | RETAINING RING | 1 | ||
| R902424668 | ADJUSTMENT SHIM | 1 | ||
| R910941920 | RETAINING RING | 1 | ||
| R910978001 | SHAFT SEALING RING | 1 |
