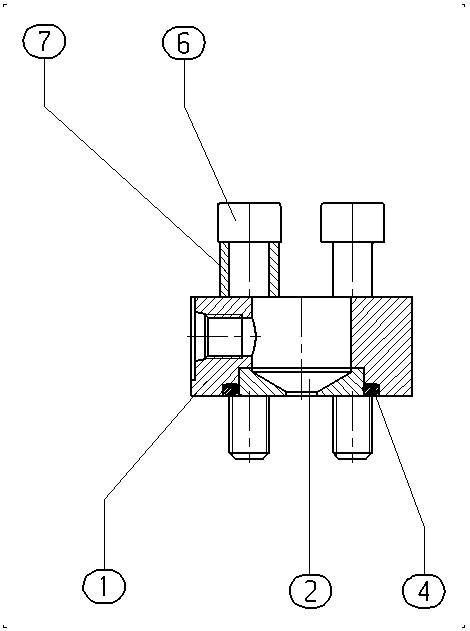

Assembly
ORIFICE FLANGER902431288
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910916119 | ORIFICE FLANGE | 1 | ||
| R902431198 | ORIFICE | 1 | ||
| R910532177 | O-RINGD | 1 | ||
| R910109665 | SOCKET HEAD CAP SCREW | 4 | ||
| R910923759 | DISTANCE PIPE | 4 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910916119 | ORIFICE FLANGE | 1 | ||
| R902431198 | ORIFICE | 1 | ||
| R910532177 | O-RINGD | 1 | ||
| R910109665 | SOCKET HEAD CAP SCREW | 4 | ||
| R910923759 | DISTANCE PIPE | 4 |
