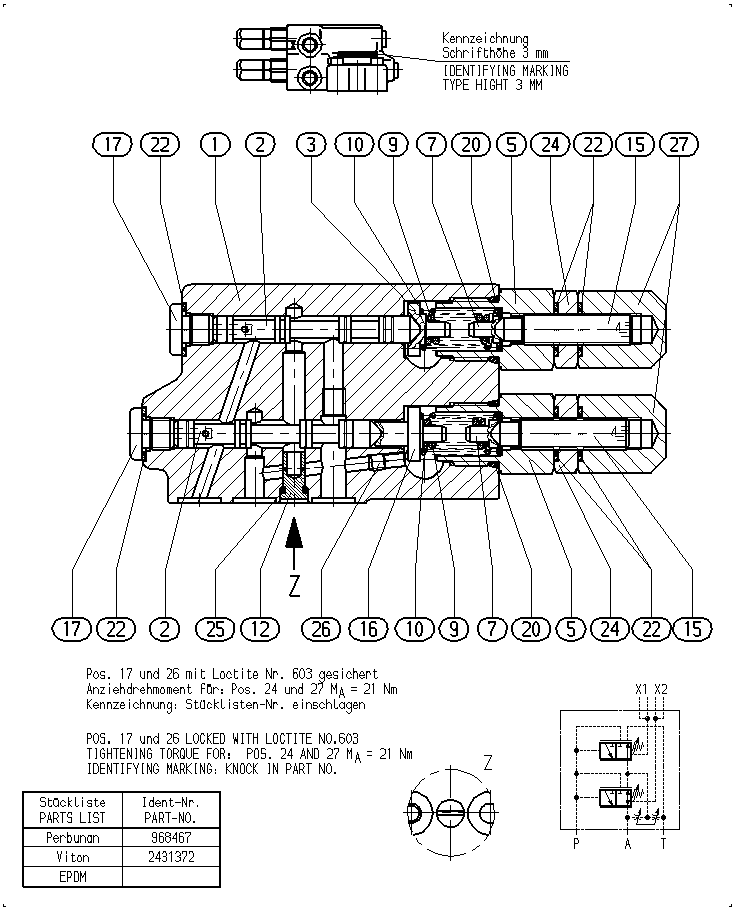

Assembly
CONTROL VALVER902431372
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910963653 | VALVE HOUSING | 1 | ||
| R910900311 | VALVE SPOOL | 2 | ||
| R910971942 | SPRING DISK | 1 | ||
| R910937909 | SCREW PLUG | 2 | ||
| R910903829 | SPRING DISK | 2 | ||
| R910924695 | COMPRESSION SPRING | 2 | ||
| R910924709 | COMPRESSION SPRING | 2 | ||
| R910930560 | ORIFICE | 1 | ||
| R910914466 | SETSCREW | 2 | ||
| R910914826 | SPRING DISK | 1 | ||
| R910933812 | SCREW PLUG | 2 | ||
| R910919314 | O-RINGD | 2 | ||
| R910642827 | BONDED SEAL RINGD | 6 | ||
| R910913806 | NUT | 2 | ||
| R910976411 | O-RING | 1 | ||
| R910914741 | SETSCREW | 1 | ||
| R910913805 | CAP NUT | 2 |
