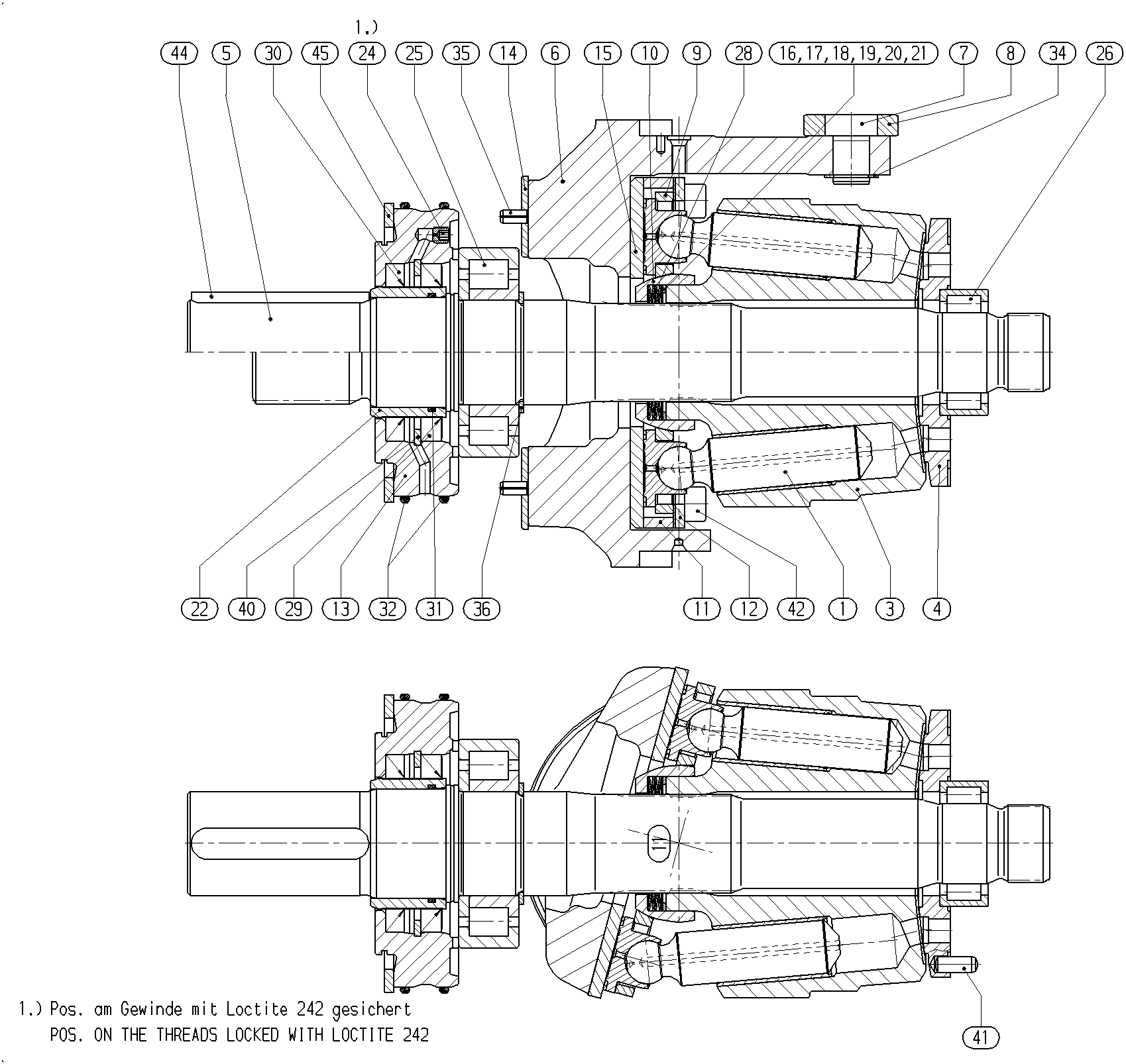

Assembly
ROTARY GROUPR902432477
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902400682 | PISTON PAD | 9 | ||
| R909440195 | CYLINDER | 1 | ||
| R910939655 | DISTRIBUTOR PLATE | 1 | ||
| R902433498 | DRIVE SHAFT | 1 | ||
| R902444334 | SWASH PLATE | 1 | ||
| R910755419 | DRIVER PIVOT | 1 | ||
| R910923648 | SLIDER | 1 | ||
| R910765198 | RETAINING PLATE | 1 | ||
| R909426456 | RETAINING BALL | 1 | ||
| R910765236 | SPACER SEGMENT | 2 | ||
| R902570168 | SEGMENT | 2 | ||
| R902426525 | SEALING FLANGE | 1 | ||
| R910989440 | BEARING SHELL | 2 | ||
| R910781576 | SLIDING DISC | 1 | ||
| R910829277 | SHIM RING | 1 | ||
| R909400444 | SHIM RING | 1 | ||
| R909408057 | SHIM RING | 1 | ||
| R910829307 | SHIM RING | 1 | ||
| R910829315 | SHIM RING | 1 | ||
| R910829323 | SHIM RING | 1 | ||
| R902426365 | SEAL BUSHING | 1 | ||
| R910922276 | NOZZLE | 1 | ||
| R910960736 | CYL. ROLLER BEARING | 1 | ||
| R910755435 | CYL. ROLLER BEARING | 1 | ||
| R909400441 | CUP-SPRING STACK | 1 | ||
| R902650544 | SHAFT SEALING RINGD | 1 | ||
| R910928941 | SHAFT SEALING RINGD | 1 | ||
| R902400874 | O-RINGD | 1 | ||
| R902650277 | O-RINGD | 2 | ||
| R910105732 | RETAINING RING | 1 | ||
| R910941972 | CLAMPING SLEEVE | 2 | ||
| R910105813 | RETAINING RING | 1 | ||
| R910125318 | RETAINING RING | 1 | ||
| R913000824 | STRAIGHT PIN | 1 | ||
| R902650864 | SOCKET HEAD CAP SCREW | 4 | ||
| R910189057 | RETAINING RING | 1 |
