Assembly

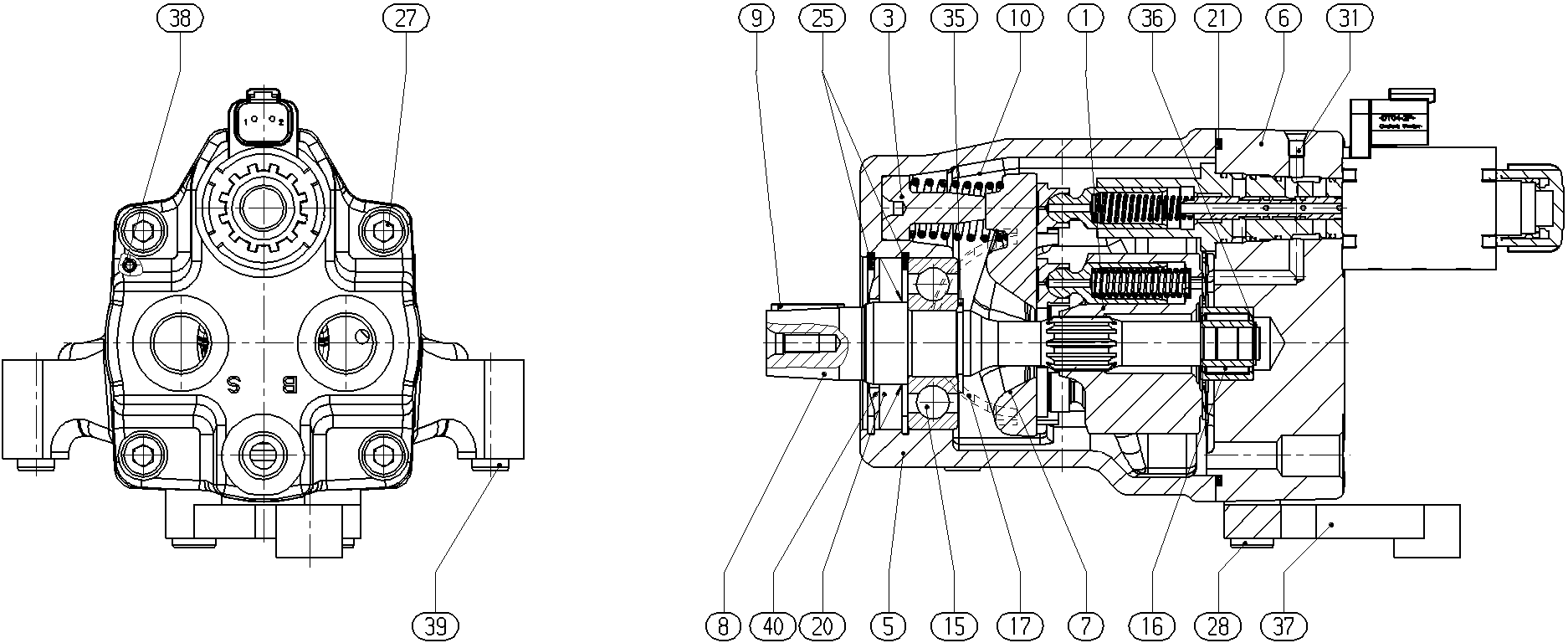

BASE UNITR902432556
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902432554 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902430329 | STOP | 1 | ||
| R902430289 | PUMP HOUSING | 1 | ||
| R902437976 | CONNECTION PLATE | 1 | ||
| R902429114 | SWASH PLATE | 1 | ||
| R902432292 | DRIVE SHAFT | 1 | ||
| R902650700 | PARALLEL KEY | 1 | ||
| R910984023 | COMPRESSION SPRING | 1 | ||
| R910984871 | DEEP-GROOVE BALL BEARING | 1 | ||
| R902650703 | NEEDLE BEARING | 1 | ||
| R910972683 | BEARING SHELL | 2 | ||
| R902650702 | SHAFT SEALING RINGD | 1 | ||
| R910080616 | O-RINGD | 1 | ||
| R910791555 | V-RING | 2 | ||
| R910109495 | SOCKET HEAD CAP SCREW | 4 | ||
| R910109479 | SOCKET HEAD CAP SCREW | 2 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910984021 | RETAINING RING | 1 | ||
| R902650701 | V-RING | 1 | ||
| R902432163 | FASTENING FLANGE | 1 | ||
| R910106712 | SLOTTED SPRING PIN | 1 | ||
| R902453378 | SLEEVE | 2 | ||
| R902453408 | SUPPORTING DISC | 1 |
