Assembly

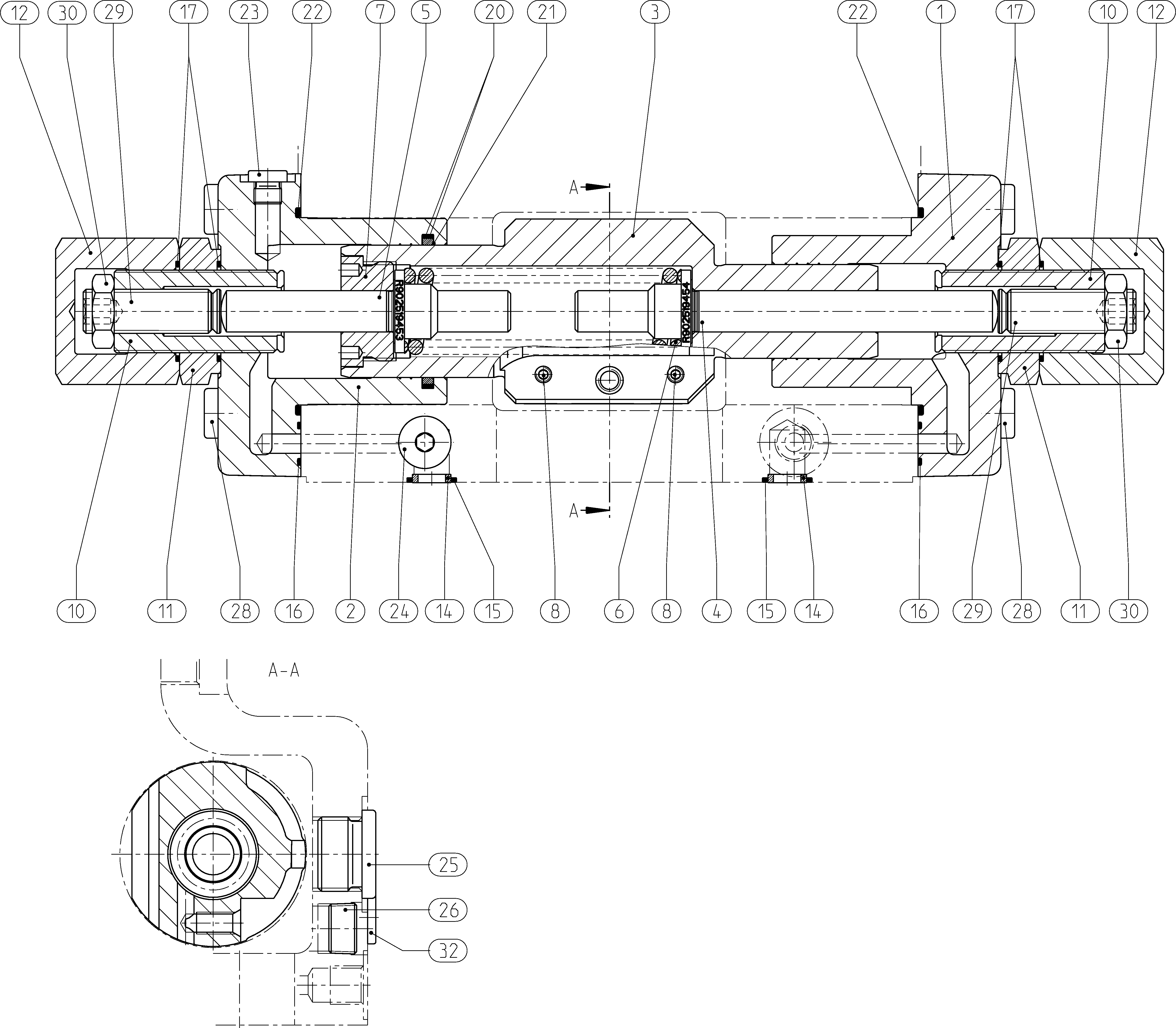

ADJUSTING PIECER902432593
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910907844 | PISTON HOUSING | 1 | ||
| R910933090 | PISTON HOUSING | 1 | ||
| R902530757 | ADJUSTING PISTON | 1 | ||
| R902519854 | PRESSURE PISTON | 1 | ||
| R902519853 | PRESSURE PISTON | 1 | ||
| R910948624 | COMPRESSION SPRING | 1 | ||
| R910948705 | PISTON GUIDE | 1 | ||
| R910187844 | SETSCREW | 2 | ||
| R902519610 | STOP SCREW | 2 | ||
| R910902817 | NUT | 2 | ||
| R910902818 | CAP NUT | 2 | ||
| R910978694 | SEAL RING | 2 | ||
| R910976410 | O-RINGD | 2 | ||
| R910916202 | O-RINGD | 2 | ||
| R910756598 | O-RINGD | 4 | ||
| R910933393 | O-RING | 2 | ||
| R910929952 | ROD SEAL | 1 | ||
| R902650322 | R-RINGD | 2 | ||
| R909156649 | SCREW PLUG | 3 | ||
| R909153930 | SCREW PLUG | 1 | ||
| R909156984 | SCREW PLUGD | 1 | ||
| R910987526 | SCREW PLUG | 1 | ||
| R910220264 | SOCKET HEAD CAP SCREW | 8 | ||
| R902519562 | STUD BOLT | 2 | ||
| R910127116 | HEXAGON NUT | 2 | ||
| 31 | R909153930 | SCREW PLUG | 1 | |
| R909153930 | SCREW PLUG | 2 |
