Assembly

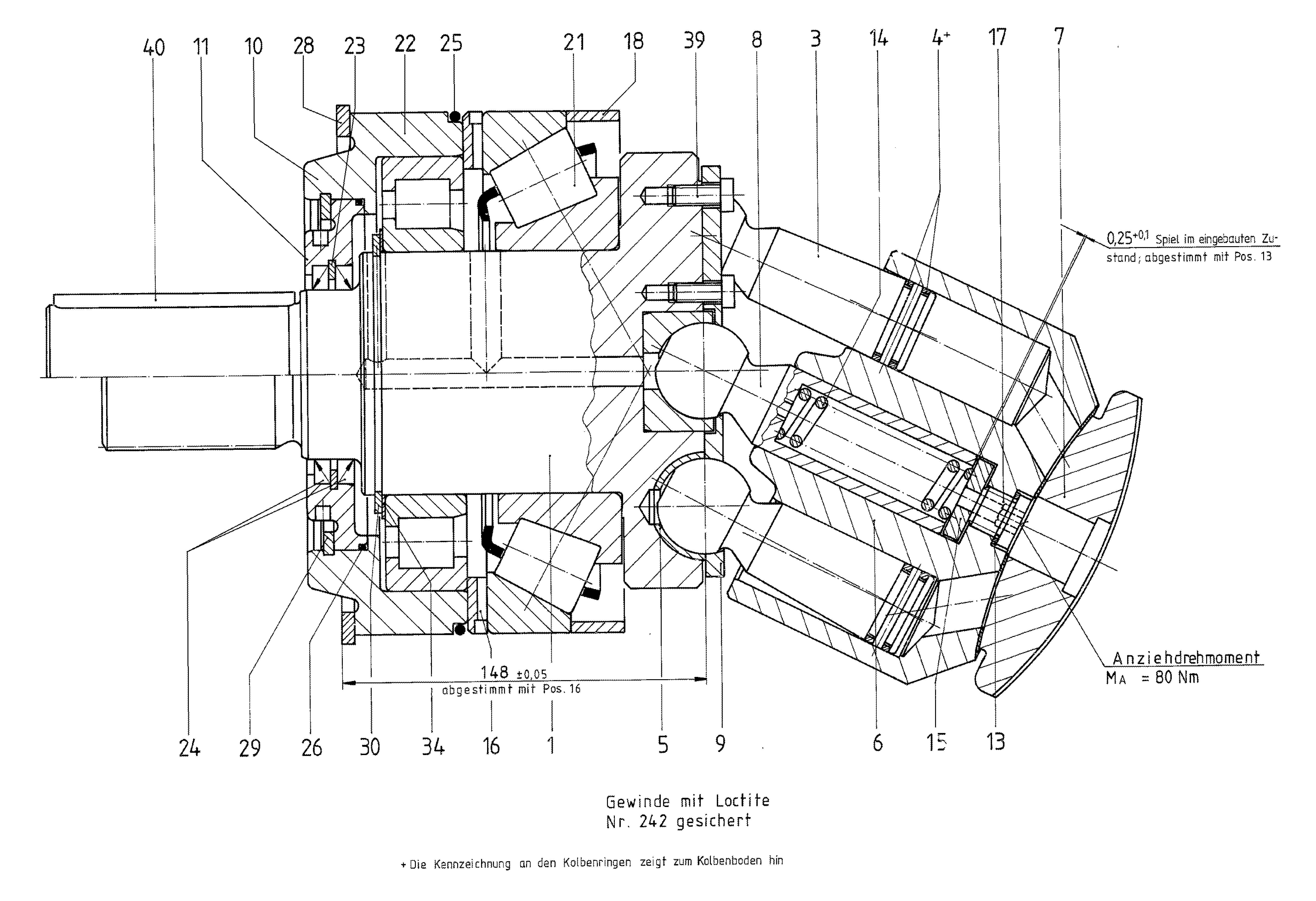

ROTARY GROUPR902432729
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902511725 | DRIVE FLANGE Assembly parts list →L | 1 | ||
| R902567608 | PISTON | 7 | ||
| R902490713 | CYLINDER | 1 | ||
| R902537039 | CONTROL LENS | 1 | ||
| R902537507 | THRUST JOURNAL | 1 | ||
| R902556371 | RETAINING PLATE | 1 | ||
| R910913008 | BEARING RING | 1 | ||
| R902410396 | SEALING FLANGE | 1 | ||
| R910936002 | SHIM RING | 1 | ||
| R910933287 | COMPRESSION SPRING | 1 | ||
| R910933031 | WASHER | 1 | ||
| R910999171 | TUNING KIT | 1 | ||
| R910933066 | SPACER SCREW | 1 | ||
| R910921181 | TAPERED-ROLLER BEARING | 1 | ||
| R910698172 | CYL. ROLLER BEARING | 1 | ||
| R910189022 | RETAINING RING | 1 | ||
| R909831663 | ROTARY SHAFT LIP SEALD | 2 | ||
| R910636355 | O-RINGD | 1 | ||
| R910921211 | O-RINGD | 1 | ||
| R910513202 | RETAINING RING | 1 | ||
| R910106135 | RETAINING RING | 1 | ||
| R910105864 | RETAINING RING | 1 | ||
| R910621471 | SHIM RING | 1 | ||
| R902602715 | PAN-HEAD SCREW | 14 |
