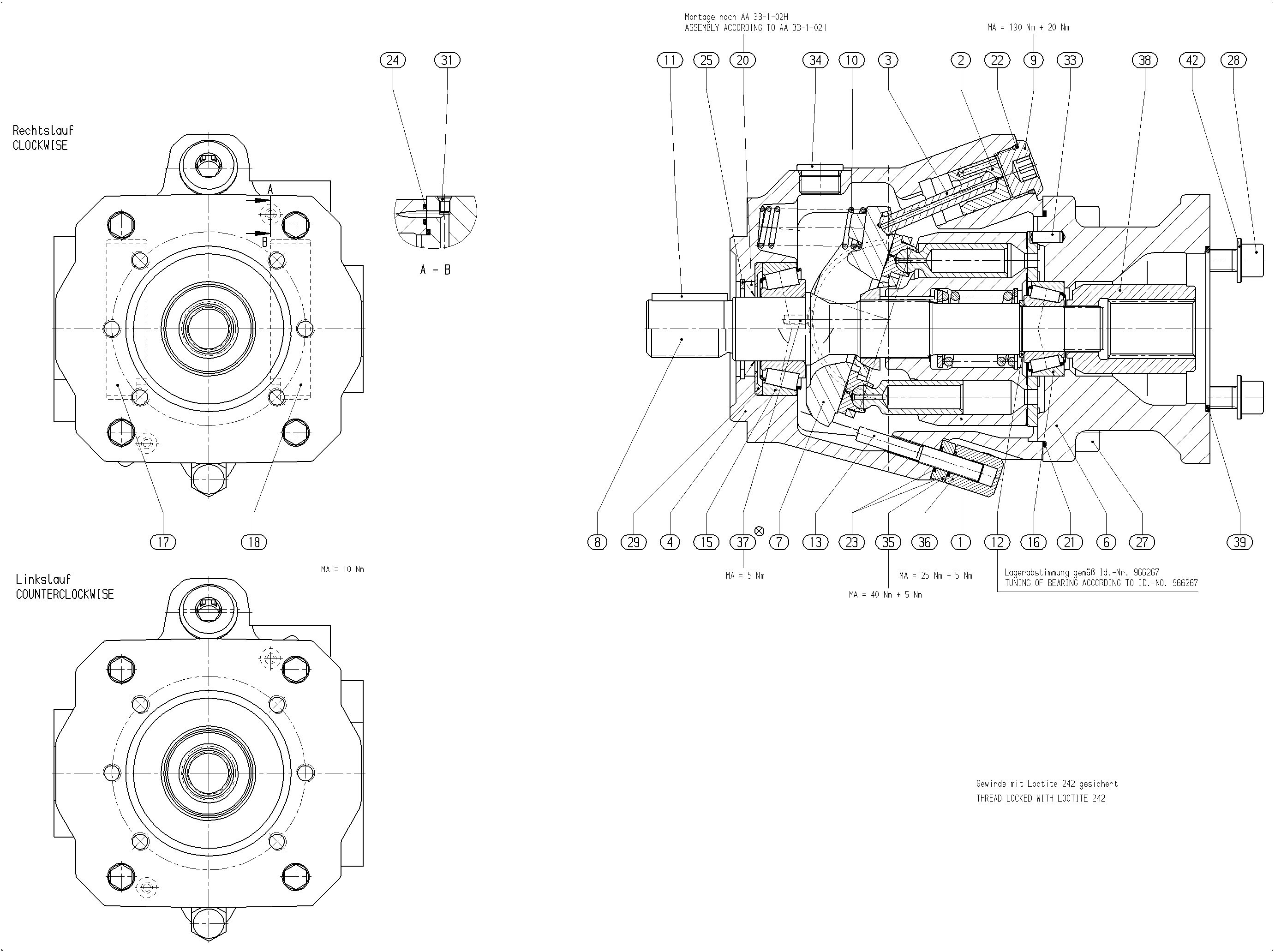

Assembly
BASE UNITR902432853
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902454129 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902438263 | ADJUSTING PISTON | 1 | ||
| R902439068 | PISTON ROD | 1 | ||
| R902420932 | MOTOR HOUSING | 1 | ||
| R910989381 | CONNECTION PLATE | 1 | ||
| R902401687 | SWASH PLATE | 1 | ||
| R902413426 | DRIVE SHAFT | 1 | ||
| R902447575 | SCREW PLUG Assembly parts list →L | 1 | ||
| R910973548 | COMPRESSION SPRING | 1 | ||
| R910966528 | ADJUSTMENT SHIM | 1 | ||
| R910933408 | STOP SCREW | 1 | ||
| R910720224 | TAPERED-ROLLER BEARING | 1 | ||
| R910973501 | TAPERED-ROLLER BEARING | 1 | ||
| R902413637 | BEARING SHELL | 1 | ||
| R902413636 | BEARING SHELL | 1 | ||
| R909831661 | SHAFT SEALING RINGD | 1 | ||
| R913050498 | O-RINGD | 1 | ||
| R910804886 | O-RING | 2 | ||
| R910942133 | R-RINGD | 2 | ||
| R910941918 | RETAINING RING | 1 | ||
| R910402303 | SOCKET HEAD CAP SCREW | 4 | ||
| R910989235 | STOP RING | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R910967343 | SCREW PLUG | 1 | ||
| R910998240 | NUT | 1 | ||
| R910961839 | CAP NUT | 1 | ||
| R910993660 | COUNTERSUNK-HEAD SCREW | 2 | ||
| R910943545 | SPLINED COUPLING | 1 | ||
| R910357049 | O-RING | 1 |
