Assembly

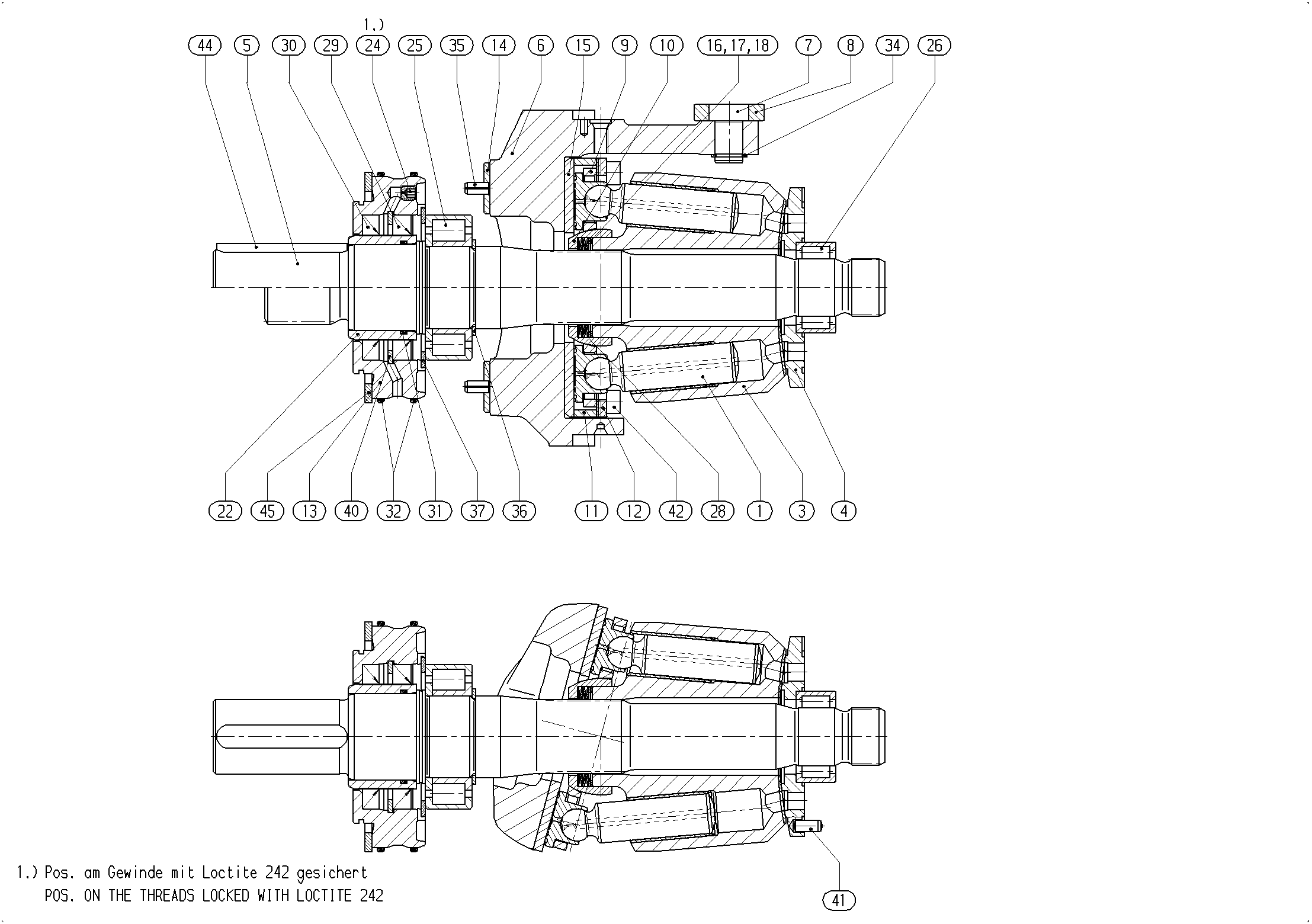

ROTARY GROUPR902433080
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902408268 | PISTON PAD | 9 | |
| R902463264 | CYLINDER | 1 | ||
| R910939654 | DISTRIBUTOR PLATE | 1 | ||
| 5 | R902433499 | DRIVE SHAFT | 1 | |
| R910944149 | SWASH PLATE | 1 | ||
| R910943967 | DRIVER PIVOT | 1 | ||
| R910944424 | SLIDER | 1 | ||
| 9 | R910944289 | RETAINING PLATE | 1 | |
| R909426452 | RETAINING BALL | 1 | ||
| 11 | R910944327 | SPACER SEGMENT | 2 | |
| 12 | R902570167 | SEGMENT | 2 | |
| 13 | R902426616 | SEALING FLANGE | 1 | |
| R910989439 | BEARING SHELL | 2 | ||
| R910944351 | SLIDING DISC | 1 | ||
| 16 | R909078313 | SHIM RING | 1 | |
| 17 | R909078314 | SHIM RING | 1 | |
| 18 | R910844306 | SHIM RING | 1 | |
| R902426364 | SEAL BUSHING | 1 | ||
| R910922276 | NOZZLE | 1 | ||
| 25 | R910960735 | CYL. ROLLER BEARING | 1 | |
| R909831337 | CYL. ROLLER BEARING | 1 | ||
| R909074125 | CUP-SPRING STACK | 1 | ||
| R910933314 | SHAFT SEALING RINGD | 1 | ||
| R910113174 | SHAFT SEALING RINGD | 1 | ||
| 31 | R902400908 | O-RINGD | 1 | |
| 32 | R910404209 | O-RINGD | 2 | |
| R910105724 | RETAINING RING | 1 | ||
| 35 | R910941972 | CLAMPING SLEEVE | 2 | |
| R909083360 | RETAINING RING | 1 | ||
| R902400875 | SHIM RING | 1 | ||
| 40 | R910106038 | RETAINING RING | 1 | |
| R902651014 | STRAIGHT PIN | 1 | ||
| R909831330 | SOCKET HEAD CAP SCREW | 4 | ||
| 45 | R910106089 | RETAINING RING | 1 |
