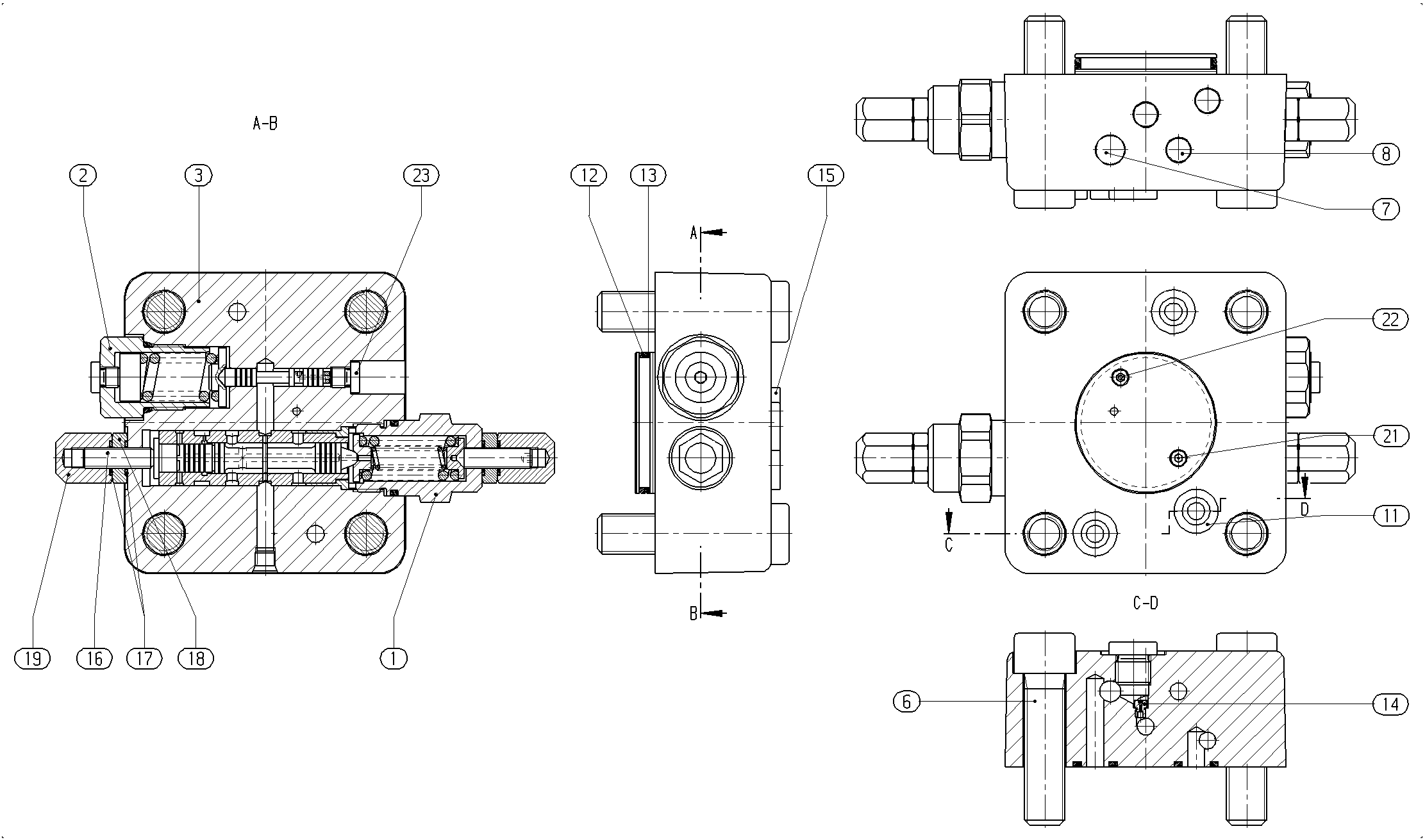

Assembly
COVERR902433555
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902408019 | VALVE INSERT | 1 | ||
| R910988553 | PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R902433429 | COVER | 1 | ||
| R910189707 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831320 | DOUBLE BREAK-OFF PLUGD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910518336 | O-RINGD | 3 | ||
| R910535834 | O-RINGD | 1 | ||
| R910939130 | BACKUP RINGD | 1 | ||
| R910593044 | NOZZLE | 1 | ||
| R909153930 | SCREW PLUGD | 4 | ||
| R910913807 | SETSCREW | 1 | ||
| R910642827 | BONDED SEAL RING | 2 | ||
| R910913806 | NUT | 1 | ||
| R910913805 | CAP NUT | 1 | ||
| R910436941 | NOZZLE | 1 | ||
| R910836303 | NOZZLE | 1 | ||
| R909156863 | SCREW PLUG | 1 |
