Assembly

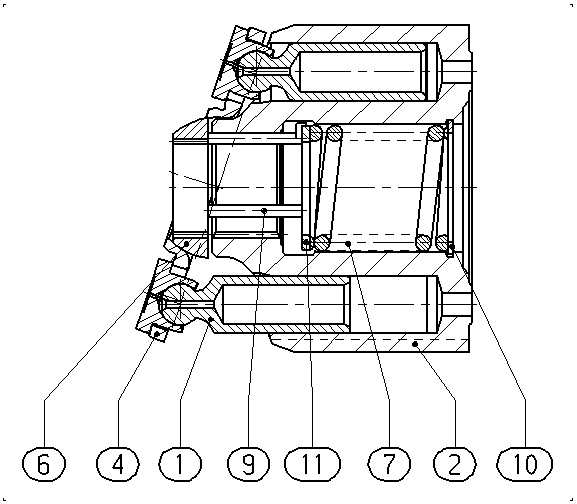

ROTARY GROUPR902434479
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902433669 | PISTON PAD | 9 | ||
| R902407321 | CYLINDER | 1 | ||
| R902400568 | RETAINING PLATE | 1 | ||
| R902400713 | RETAINING BALL | 1 | ||
| R902400714 | COMPRESSION SPRING | 1 | ||
| R902464162 | PRESSURE PIN | 3 | ||
| R902400716 | V-RING | 1 | ||
| R902400717 | SUPPORTING DISC | 1 |
