Assembly

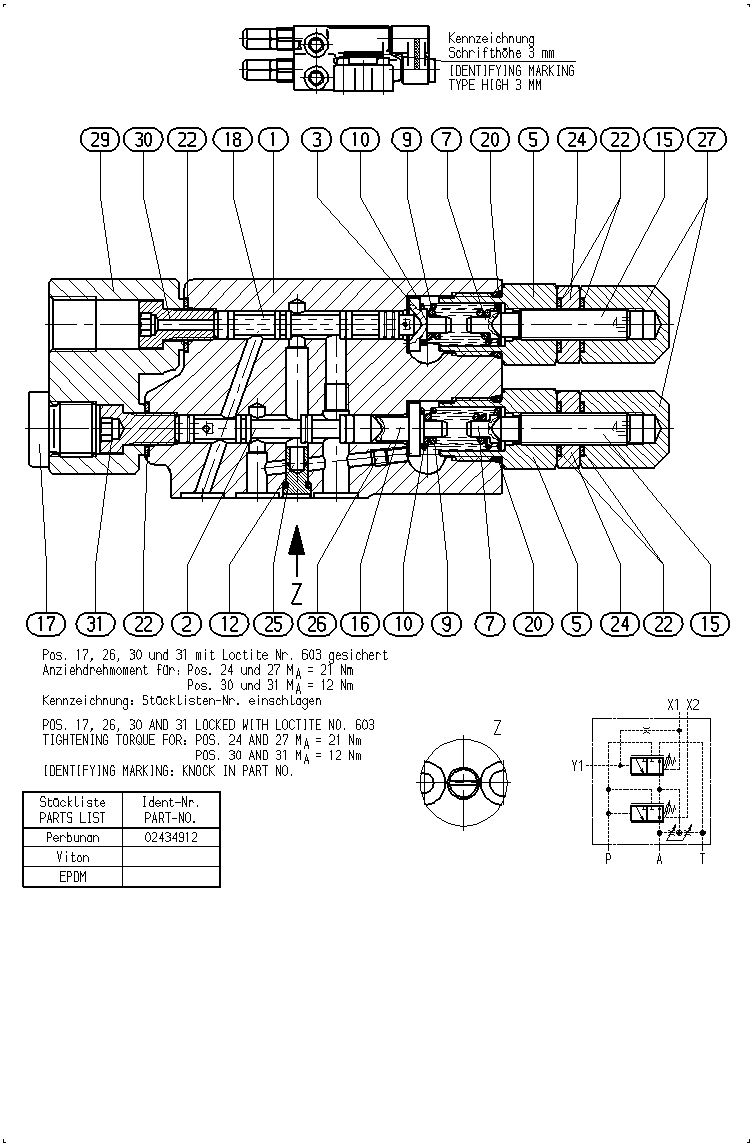

CONTROL VALVER902434912
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910963653 | VALVE HOUSING | 1 | |
| R910900311 | VALVE SPOOL | 1 | ||
| R910971942 | SPRING DISK | 1 | ||
| 5 | R910937909 | SCREW PLUG | 2 | |
| R910903829 | SPRING DISK | 2 | ||
| 9 | R910924695 | COMPRESSION SPRING | 2 | |
| R910924709 | COMPRESSION SPRING | 2 | ||
| R910930560 | ORIFICE | 1 | ||
| R910914466 | SETSCREW | 2 | ||
| R910914826 | SPRING DISK | 1 | ||
| 17 | R909151979 | SCREW PLUG | 1 | |
| 18 | R910938503 | VALVE SPOOL | 1 | |
| R910515124 | O-RINGD | 2 | ||
| R910114774 | BONDED SEAL RINGD | 6 | ||
| R910913806 | NUT | 2 | ||
| R910977084 | O-RING | 1 | ||
| R910914741 | SETSCREW | 1 | ||
| 27 | R910913805 | CAP NUT | 2 | |
| R910972820 | DOUBLE ADAPTER | 1 | ||
| 30 | R910965426 | HOLLOW BOLT | 1 | |
| 31 | R902423290 | SCREW | 1 |
