Assembly

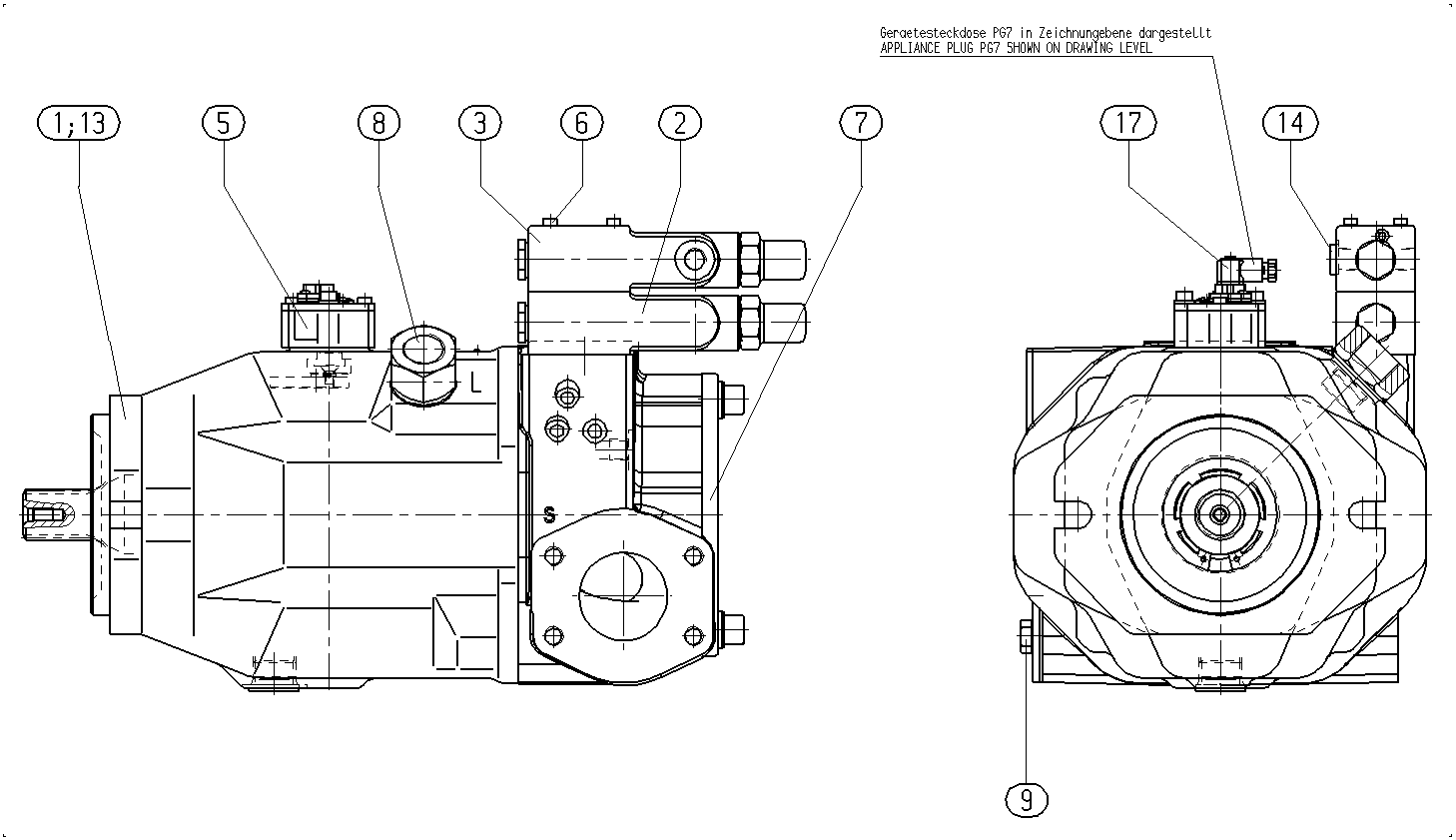

AXIAL-PISTON PUMPR902435195
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902435065 | BASE UNIT Assembly parts list →L | 1 | ||
| R910924992 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910924990 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R900868651 | ASSEMBLY KIT | 1 | ||
| R910799998 | SOCKET HEAD CAP SCREW | 4 | ||
| R902469010 | SEALING COVER Assembly parts list →L | 1 | ||
| R910910741 | ADAPTER Assembly parts list →L | 1 | ||
| R902400594 | FLANGE COVER | 1 | ||
| R910917804 | SIDE MARKER RING | 1 | ||
| R909151979 | SCREW PLUG | 1 | ||
| R902650462 | EQUIPMENT SOCKET | 1 |
