Assembly

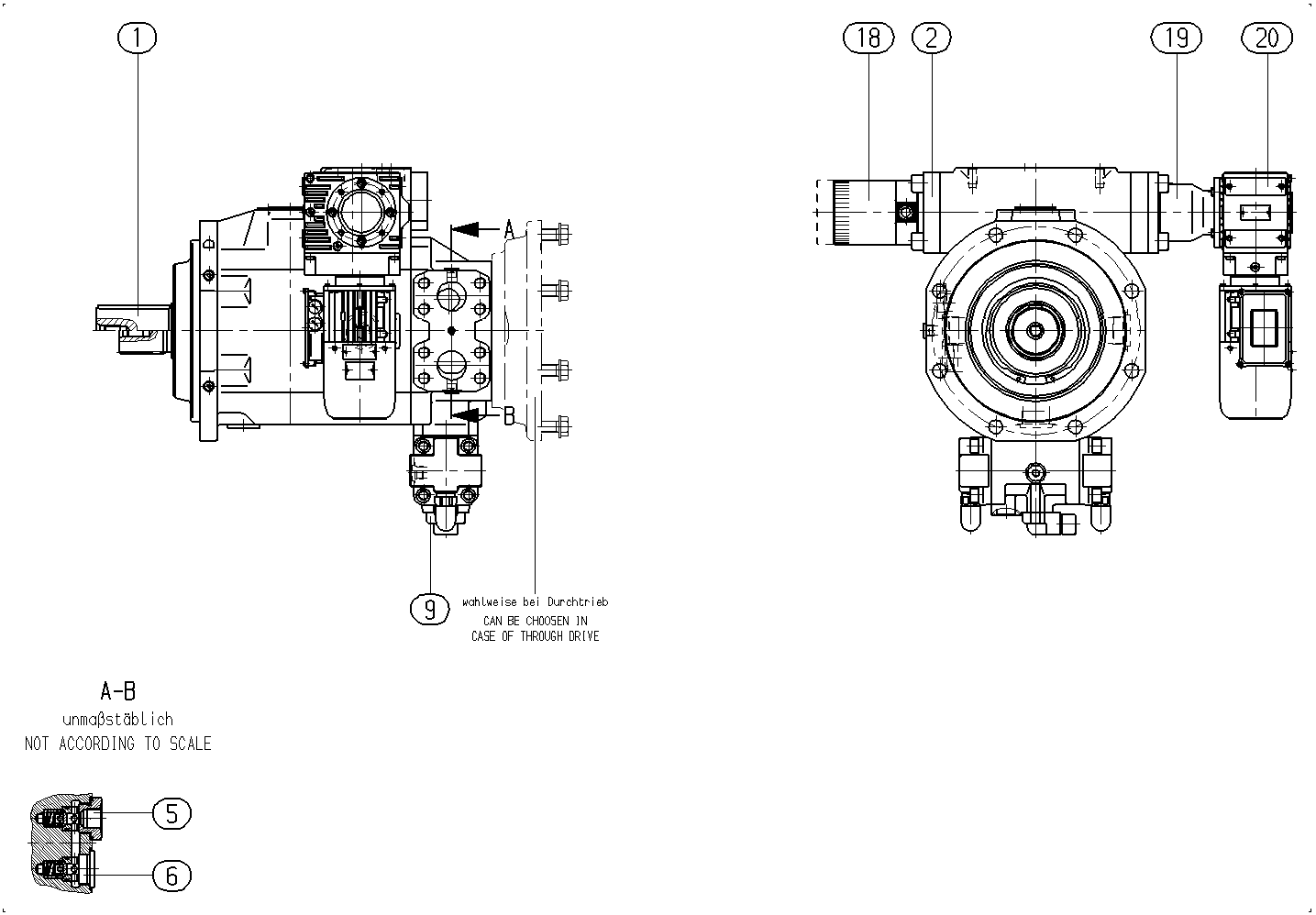

AXIAL-PISTON PUMPR902436091
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902436155 | BASE UNIT Assembly parts list →L | 1 | ||
| R910946075 | CONTROL Assembly parts list →L | 1 | ||
| R910948834 | VALVE MOUNTING KIT | 1 | ||
| R910944807 | VALVE MOUNTING KIT | 1 | ||
| R910902407 | FLUSHING BLOCK Assembly parts list →L | 1 | ||
| R910946076 | LIMIT SWITCH | 1 | ||
| R910989810 | COUPLING | 1 | ||
| R910997585 | GEAR MOTOR | 1 | ||
| 61 | R902805710 | SHIPPING PROTECTION | 2 | |
| 62 | R902602207 | SEAL SCREW | 1 | |
| 64 | R902602013 | SEAL SCREW | 1 | |
| 65 | R902602013 | SEAL SCREW | 1 | |
| 71 | R902497948 | FLANGE COVER Assembly parts list →L | 1 |
