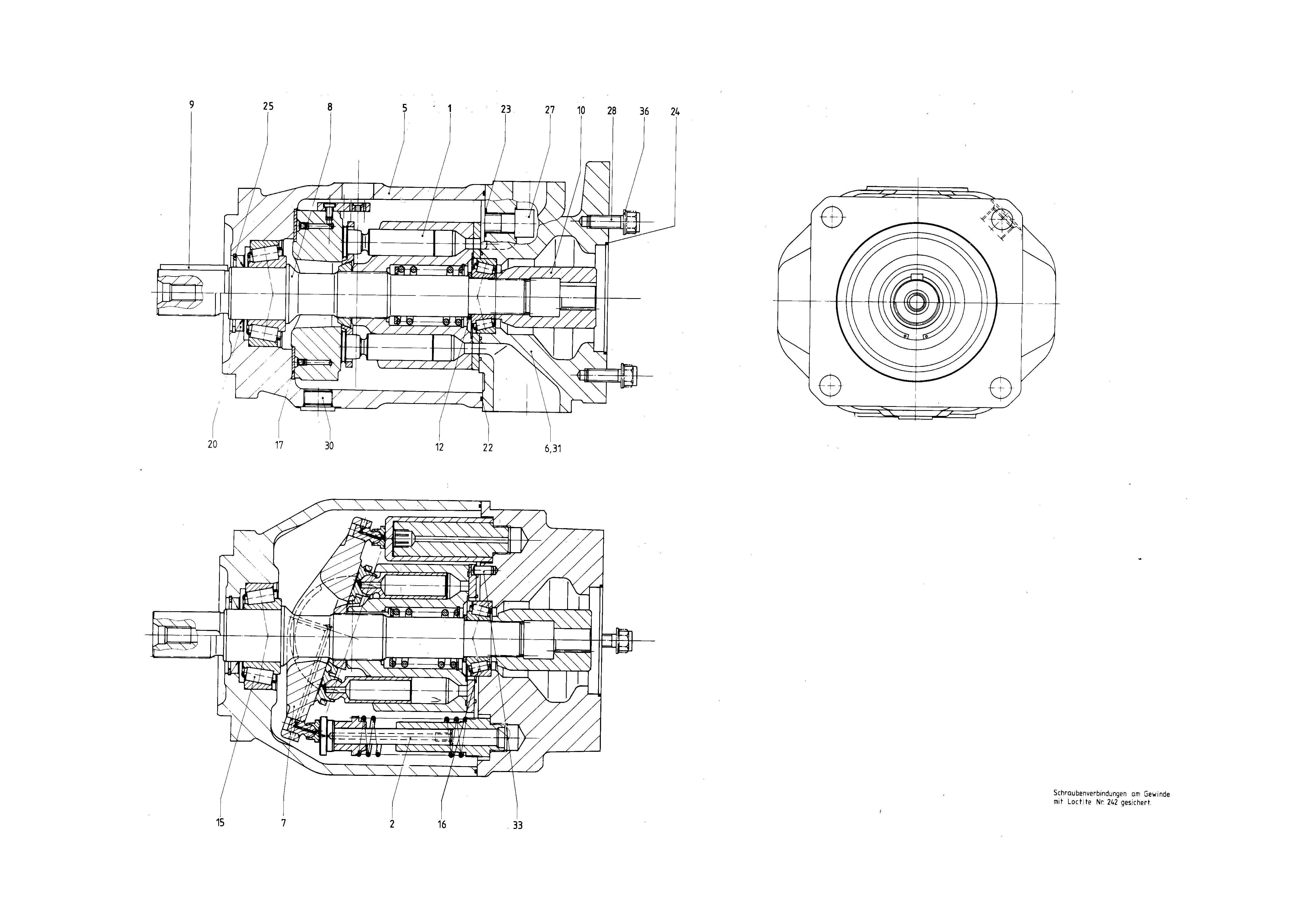

Assembly
BASE UNITR902436862
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910945537 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910942716 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910988235 | PUMP HOUSING | 1 | ||
| R902401505 | CONNECTION PLATE | 1 | ||
| R902467245 | SWASH PLATE | 1 | ||
| R910987710 | DRIVE SHAFT | 1 | ||
| R902425273 | ADJUSTMENT SHIM | 1 | ||
| 14 | R910988055 | STOP RING | 1 | |
| R910918203 | TAPERED-ROLLER BEARING | 1 | ||
| R910918201 | TAPERED-ROLLER BEARING | 1 | ||
| R910918174 | BEARING SHELL | 2 | ||
| R909831178 | SHAFT SEALING RINGD | 1 | ||
| R910930461 | O-RINGD | 1 | ||
| R913053032 | R-RINGD | 4 | ||
| R910631175 | O-RINGD | 1 | ||
| R910941920 | RETAINING RING | 1 | ||
| R910659169 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156984 | SCREW PLUGD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910922017 | STRAIGHT PIN | 1 | ||
| 34 | R913011609 | SCREW PLUG | 1 |
