Assembly

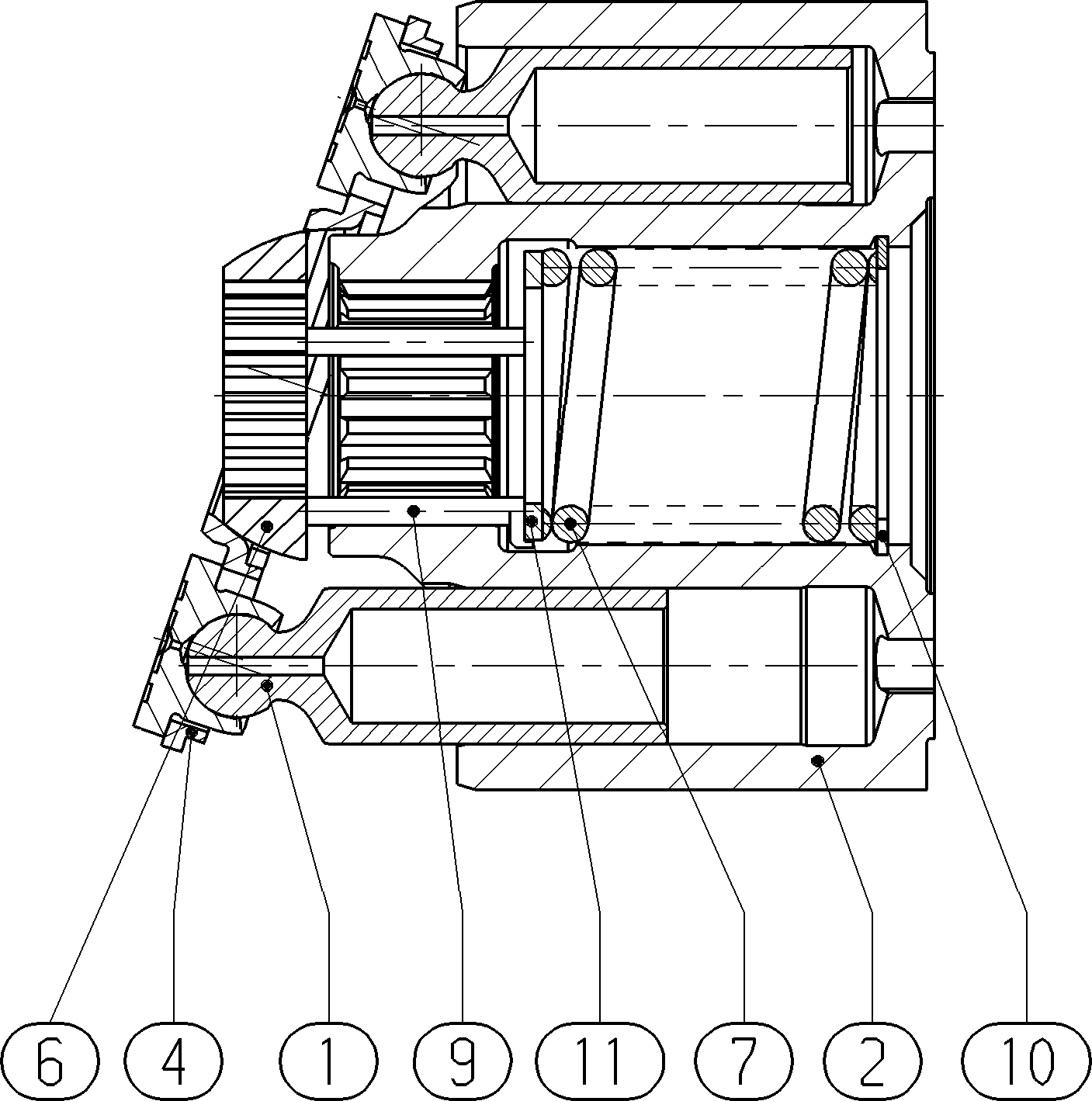

ROTARY GROUPR902439326
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902554685 | PISTON PAD | 9 | ||
| R902424563 | CYLINDER | 1 | ||
| R902561493 | RETAINING PLATE | 1 | ||
| R902449229 | RETAINING BALL | 1 | ||
| R902408916 | COMPRESSION SPRING | 1 | ||
| R902464162 | PRESSURE PIN | 3 | ||
| R902400716 | V-RING | 1 | ||
| R902400717 | SUPPORTING DISC | 1 |
