Assembly

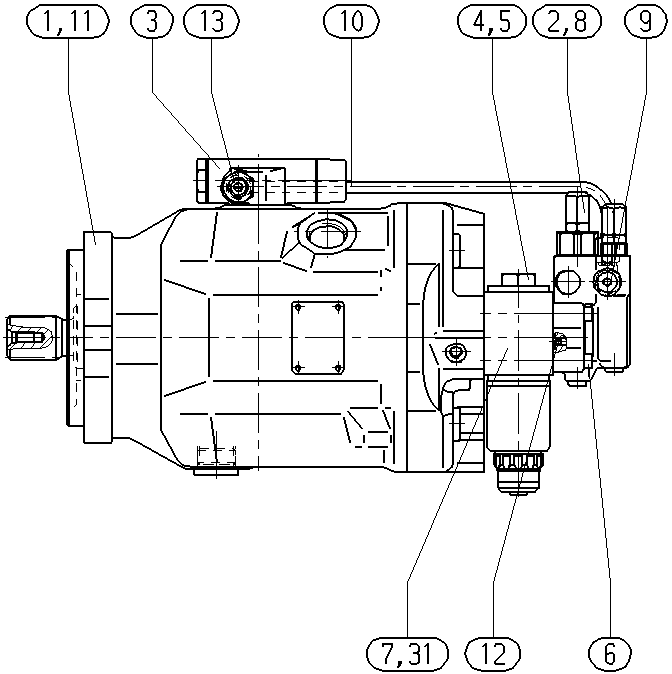

AXIAL-PISTON PUMPR902443653
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910992534 | BASE UNIT Assembly parts list →L | 1 | ||
| R902493020 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533217 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902650786 | DIRECTIONAL SPOOL VALVE | 1 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 4 | ||
| R910359491 | SOCKET HEAD CAP SCREW | 4 | ||
| R902469141 | INTERMEDIATE PLATE | 1 | ||
| R909154478 | SCREW PLUG | 1 | ||
| R902443654 | PIPING Assembly parts list →L | 1 | ||
| R910936518 | POWER DIAGRAM | 1 | ||
| R902540856 | NOZZLE | 1 | ||
| R910932940 | ADAPTER Assembly parts list →L | 1 | ||
| 15 | R902434482 | SEAL | 2 | |
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 |
