Assembly

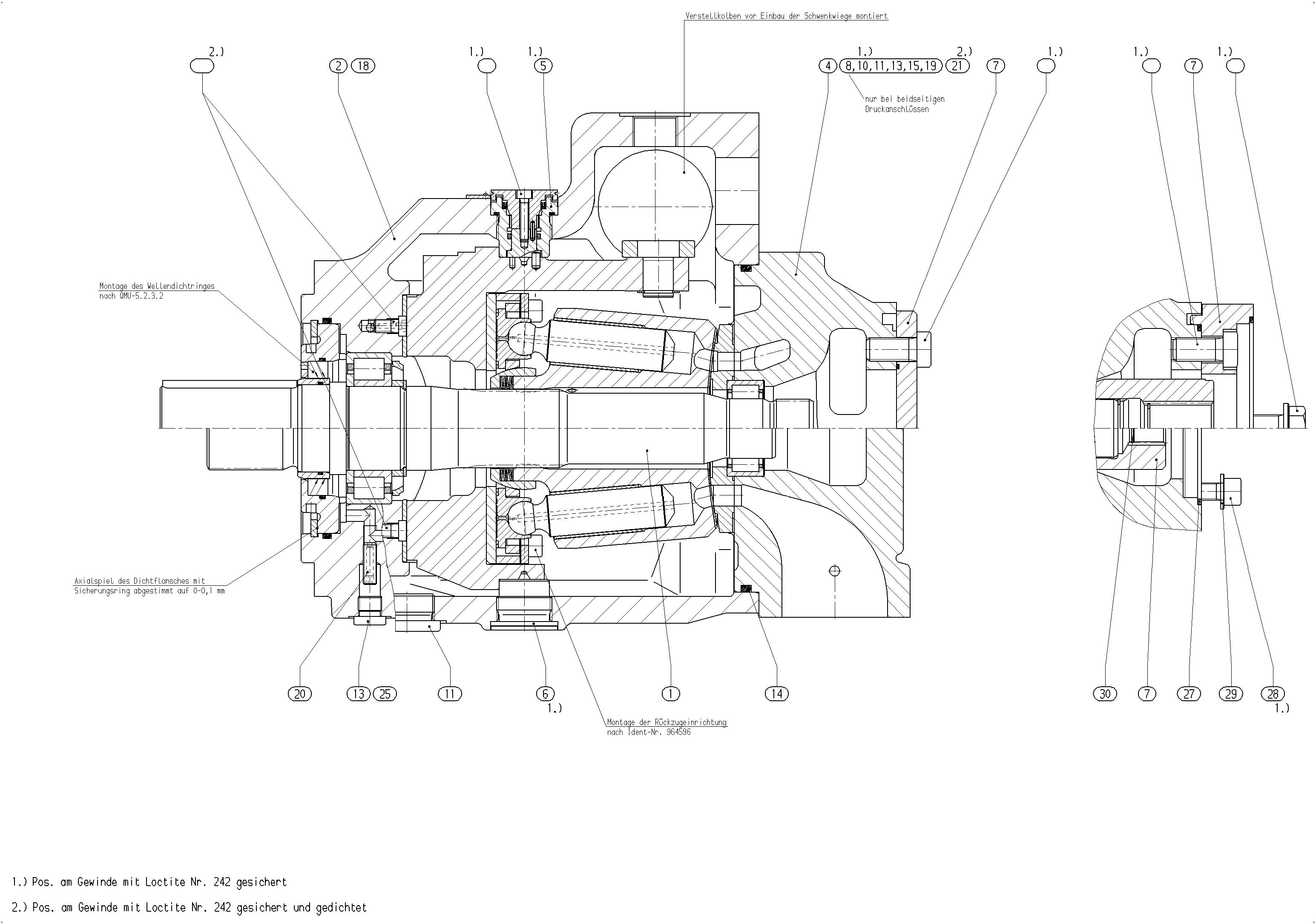

BASE UNITR902444108
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902405027 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910994079 | PUMP HOUSING | 1 | ||
| R910947887 | CONNECTION PLATE | 1 | ||
| R910996983 | INDICATING DEVICE Assembly parts list →L | 1 | ||
| R910798355 | STUD BOLT Assembly parts list →L | 1 | ||
| R902489971 | SPLINED COUPLING | 1 | ||
| R910209228 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153861 | SCREW PLUGD | 4 | ||
| R909151979 | SCREW PLUGD | 3 | ||
| R910783854 | O-RINGD | 1 | ||
| R910942134 | R-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910987283 | THROTTLE SCREW | 1 | ||
| R910922276 | NOZZLE | 1 | ||
| R910979853 | REFERENCE PLATE | 1 | ||
| R910384259 | O-RING | 1 | ||
| R910714917 | SOCKET HEAD CAP SCREW | 2 |
