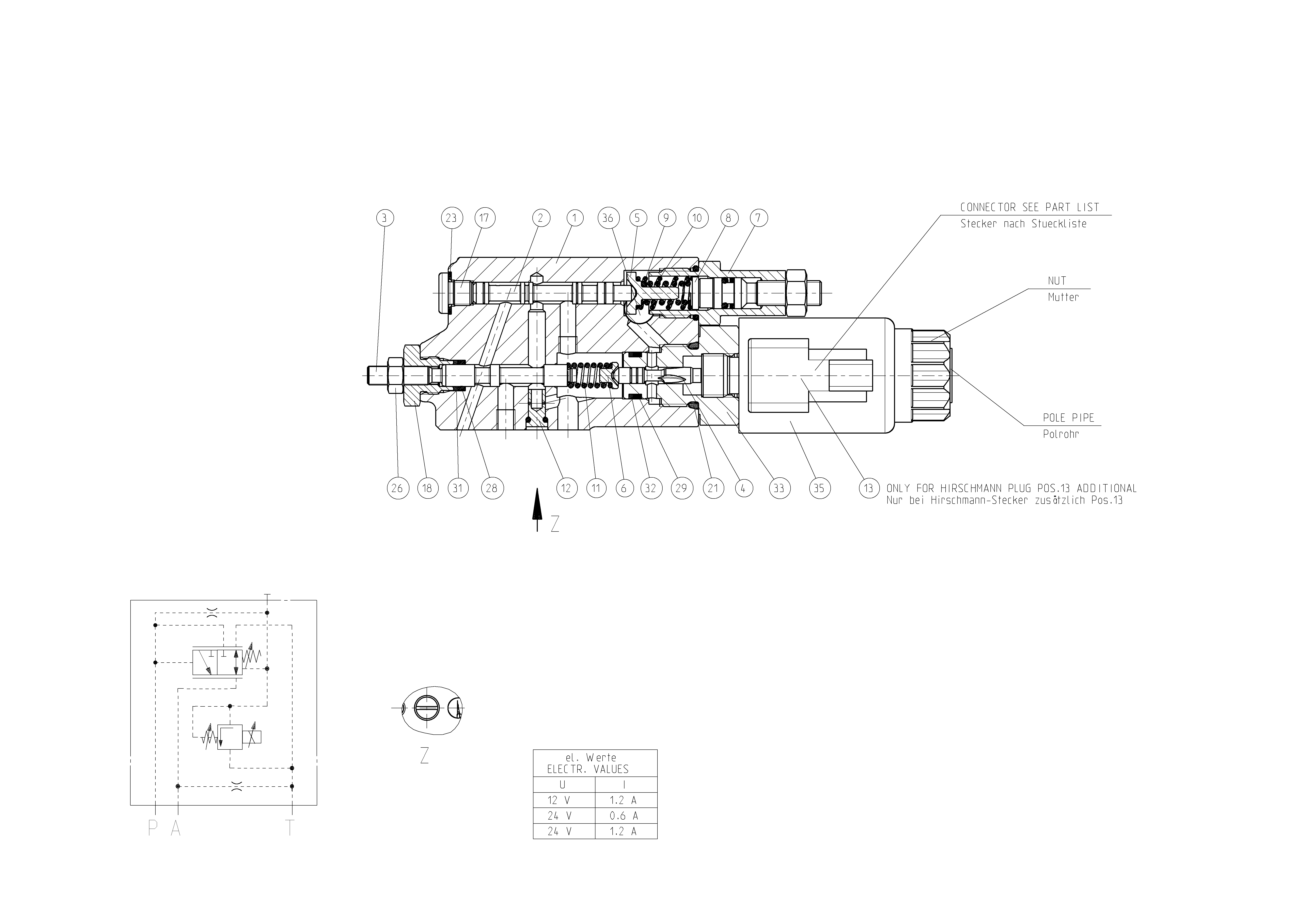

Assembly
CONTROL VALVER902444451
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902483038 | VALVE HOUSING | 1 | ||
| R902466430 | VALVE SPOOL | 1 | ||
| R902477396 | SETTING PISTON | 1 | ||
| R902416379 | CONTROL PISTON | 1 | ||
| R910929875 | SPRING DISK | 1 | ||
| R902460954 | SPRING DISK | 1 | ||
| R902466283 | SERVO UNIT Assembly parts list →L | 1 | ||
| R910900362 | WASHER | 1 | ||
| 9 | R910924695 | COMPRESSION SPRING | 1 | |
| R910924709 | COMPRESSION SPRING | 1 | ||
| 11 | R902417341 | COMPRESSION SPRING | 1 | |
| R902451582 | ORIFICE Assembly parts list →L | 1 | ||
| 17 | R910933812 | SCREW PLUG | 1 | |
| R902477397 | SCREW PLUG | 1 | ||
| R910080594 | O-RING | 1 | ||
| R910642827 | BONDED SEAL RING | 1 | ||
| R902650623 | HEXAGON NUT | 1 | ||
| R913022398 | O-RING | 1 | ||
| R902650236 | O-RING | 1 | ||
| 31 | R902479685 | BACKUP RING | 1 | |
| 32 | R902650630 | BACKUP RING | 1 | |
| 33 | R902416378 | PISTON GUIDE | 1 | |
| 35 | R913041248 | PROPORTIONAL SOLENOID | 1 | |
| R910764647 | SCREW PLUG | 1 |
