Assembly

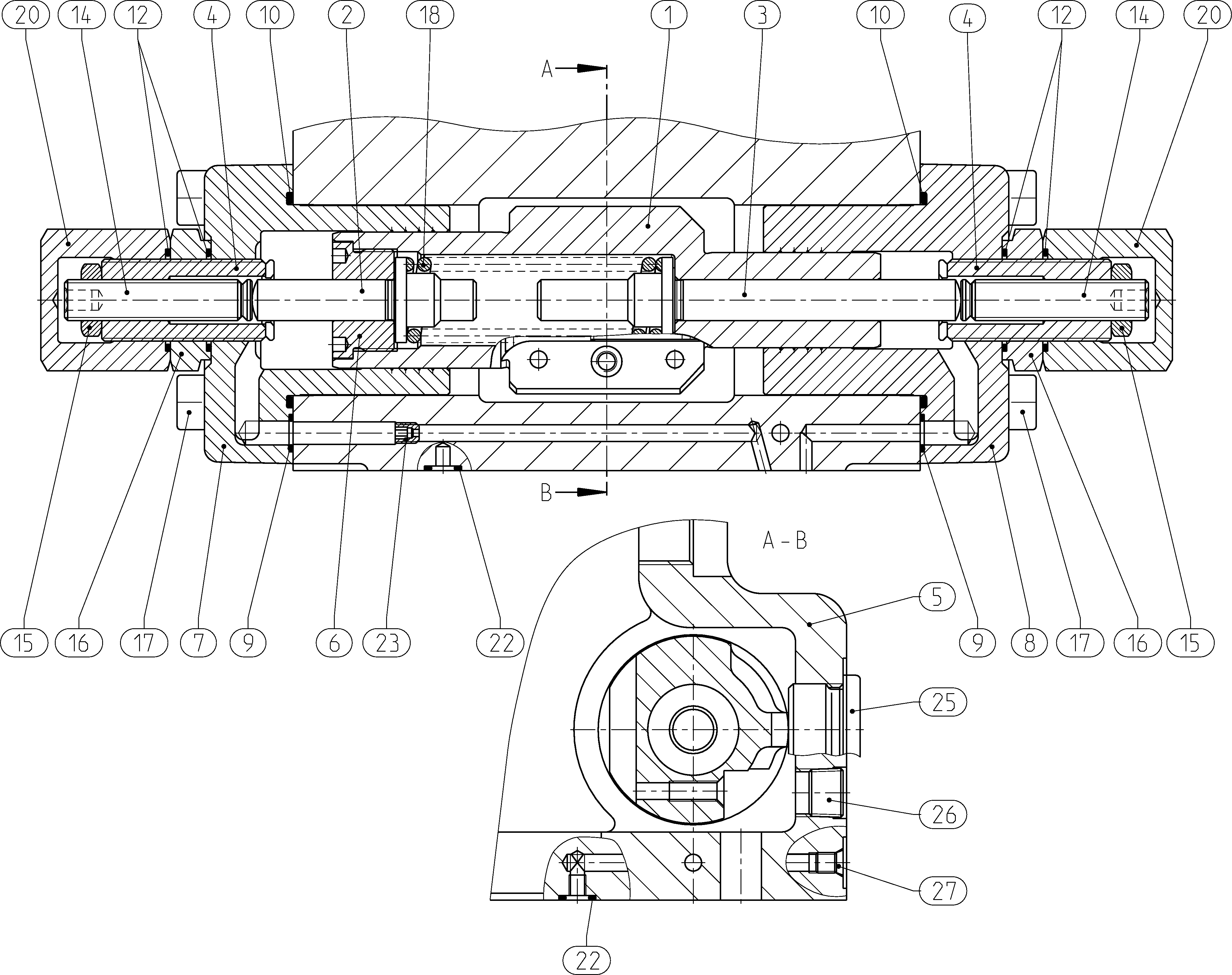

ADJUSTING PIECER902445505
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902530756 | ADJUSTING PISTON | 1 | ||
| R902519851 | PRESSURE PISTON | 1 | ||
| R902519852 | PRESSURE PISTON | 1 | ||
| R902519604 | STOP SCREW | 2 | ||
| R910919560 | PUMP HOUSING | 1 | ||
| R902519844 | PISTON GUIDE | 1 | ||
| R910936456 | PISTON HOUSING | 1 | ||
| R910907843 | PISTON HOUSING | 1 | ||
| R910942133 | R-RINGD | 2 | ||
| R910930814 | O-RINGD | 2 | ||
| R910902854 | O-RINGD | 4 | ||
| R902519560 | STUD BOLT | 2 | ||
| R910117773 | HEXAGON NUT | 2 | ||
| R910902820 | NUT | 2 | ||
| R910119091 | SOCKET HEAD CAP SCREW | 8 | ||
| R910900100 | COMPRESSION SPRING | 1 | ||
| R910902819 | CAP NUT | 2 | ||
| R910942133 | R-RINGD | 2 | ||
| R910900177 | NOZZLE | 1 | ||
| R909156984 | SCREW PLUG | 1 | ||
| R910108065 | SCREW PLUG | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 |
