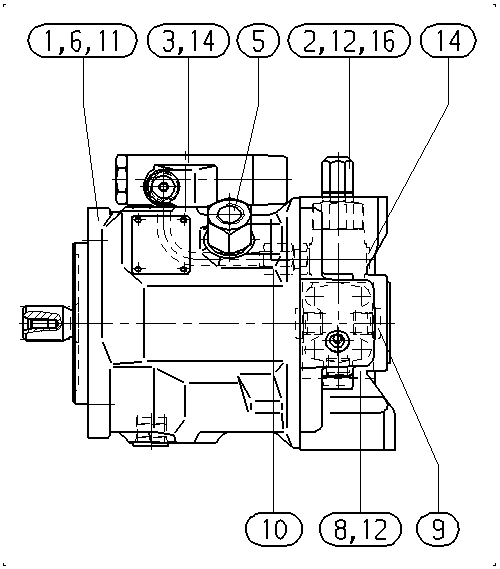

Assembly
AXIAL-PISTON PUMPR902445861
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910970681 | BASE UNIT Assembly parts list →L | 1 | ||
| R902490089 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533217 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910792829 | ADAPTER Assembly parts list →L | 1 | ||
| R910969311 | SIDE MARKER RING | 1 | ||
| R910983074 | INTERMEDIATE PLATE | 1 | ||
| R909151979 | SCREW PLUG | 3 | ||
| R910987476 | PIPING Assembly parts list →L | 1 | ||
| R910908537 | POWER DIAGRAM | 1 | ||
| R910515078 | O-RING | 3 | ||
| R909154478 | SCREW PLUG | 2 | ||
| R910126454 | SOCKET HEAD CAP SCREW | 4 | ||
| 17 | R902417268 | SEAL | 1 |
