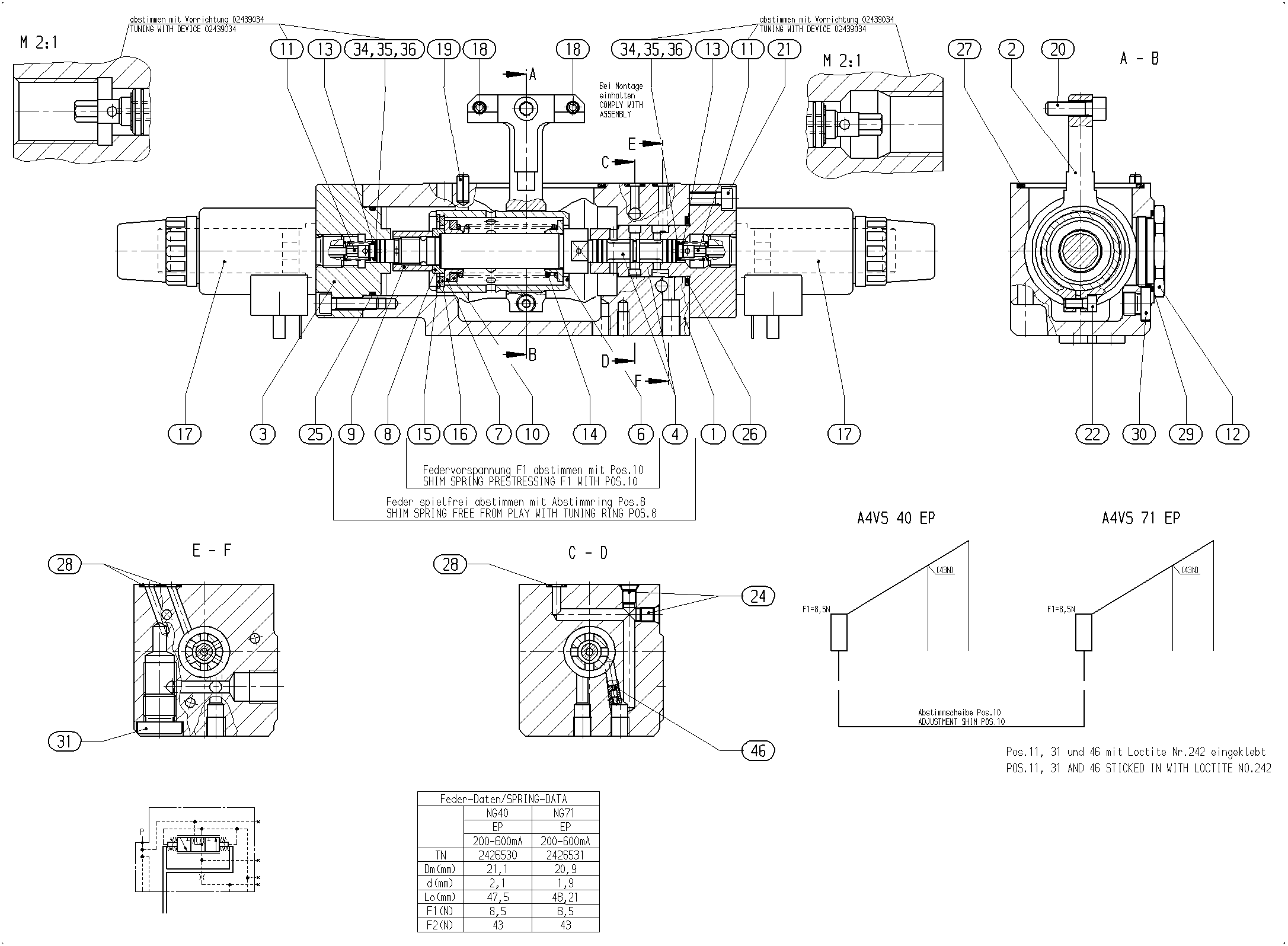

Assembly
CONTROL MODULER902447792
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910930197 | CONTROL HOUSING | 1 | ||
| R902474028 | LEVER | 1 | ||
| R910965499 | CONTROL COVER | 1 | ||
| R910965421 | CONTROL PISTON | 1 | ||
| R910965472 | SPRING SLEEV | 1 | ||
| R902426686 | SPRING SLEEV | 2 | ||
| R910965545 | SHIM RING | 1 | ||
| R910965537 | COUNTER NUT | 1 | ||
| R910965502 | ADJUSTMENT SHIM | 1 | ||
| R902438042 | PIVOT | 2 | ||
| R910966711 | SCREW PLUG | 1 | ||
| R902435820 | COMPRESSION SPRING | 2 | ||
| R902426530 | COMPRESSION SPRING | 1 | ||
| R910105937 | RETAINING RING | 1 | ||
| R910105422 | SUPPORTING DISC | 1 | ||
| R902602653 | PROPORTIONAL SOLENOID | 2 | ||
| R910997949 | CLAMPING SLEEVE | 2 | ||
| R910073571 | SLOTTED SPRING PIN | 2 | ||
| R910109304 | SOCKET HEAD CAP SCREW | 1 | ||
| R910120111 | SOCKET HEAD CAP SCREW | 6 | ||
| R910109177 | SOCKET HEAD CAP SCREW | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910971138 | O-RINGD | 1 | ||
| R910934357 | O-RINGD | 1 | ||
| R910824801 | O-RINGD | 1 | ||
| R910930806 | O-RINGD | 3 | ||
| R910756601 | O-RINGD | 1 | ||
| R909156649 | SCREW PLUGD | 1 | ||
| R909153930 | SCREW PLUG | 1 | ||
| R902650809 | SHIM RING | 2 | ||
| R910756652 | SHIM RING | 2 | ||
| R910416398 | SHIM RING | 2 | ||
| R910923856 | NOZZLE | 1 |
