Assembly

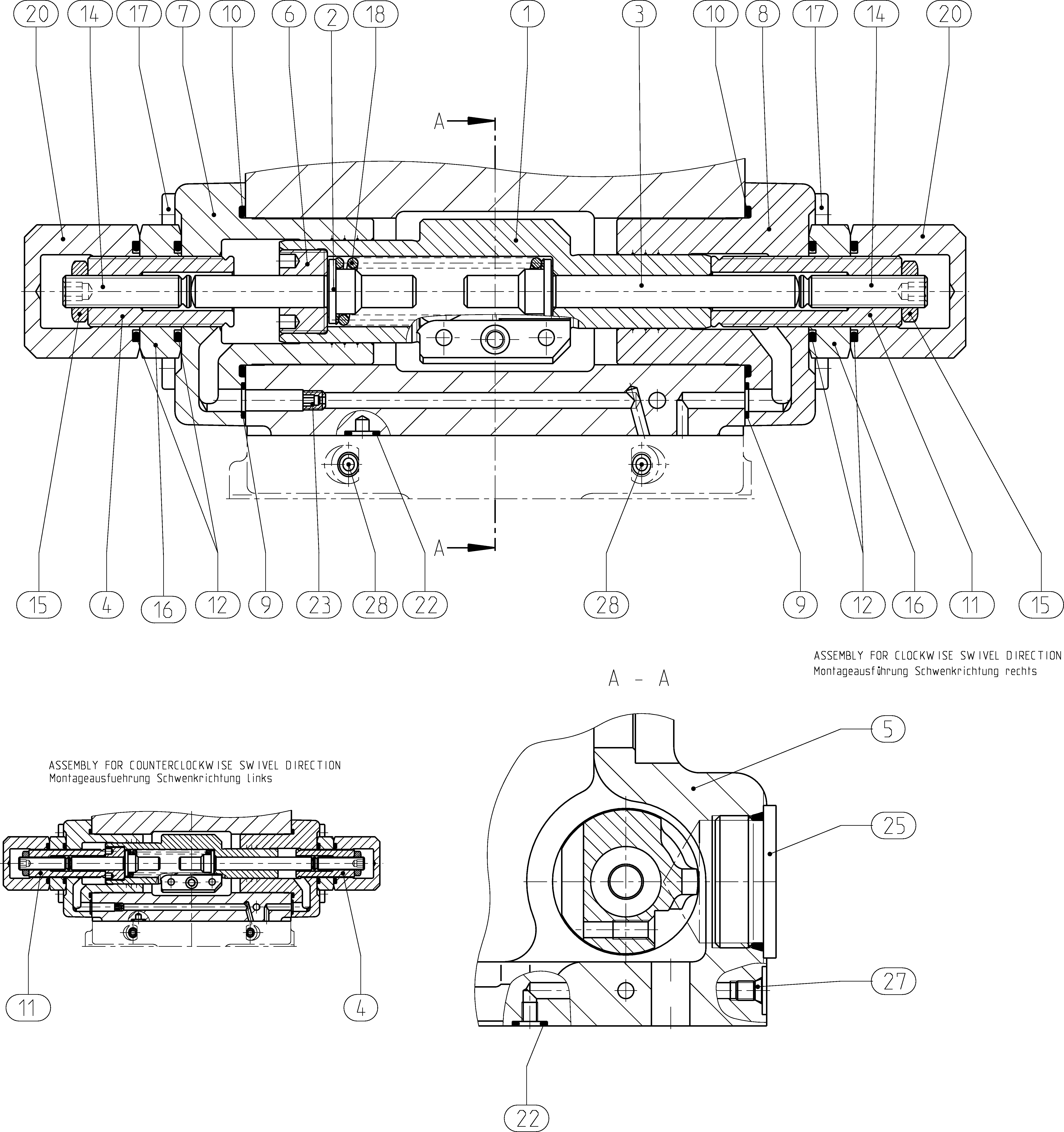

ADJUSTING PIECER902447906
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902530755 | ADJUSTING PISTON | 1 | ||
| R902519849 | PRESSURE PISTON | 1 | ||
| R902519850 | PRESSURE PISTON | 1 | ||
| R902519602 | STOP SCREW | 1 | ||
| R910919643 | PUMP HOUSING | 1 | ||
| R910901038 | PISTON GUIDE | 1 | ||
| R910901044 | PISTON HOUSING | 1 | ||
| R910901043 | PISTON HOUSING | 1 | ||
| R910942133 | R-RINGD | 2 | ||
| R910904936 | O-RINGD | 2 | ||
| R902519603 | STOP SCREW | 1 | ||
| R910531243 | O-RINGD | 4 | ||
| R902519559 | STUD BOLT | 2 | ||
| R910125865 | HEXAGON NUT | 2 | ||
| R910912241 | NUT | 2 | ||
| R910231991 | SOCKET HEAD CAP SCREW | 8 | ||
| R910901033 | COMPRESSION SPRING | 1 | ||
| R910912240 | CAP NUT | 2 | ||
| R910942133 | R-RINGD | 2 | ||
| R910900177 | NOZZLE | 1 | ||
| R910903872 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 |
