Assembly

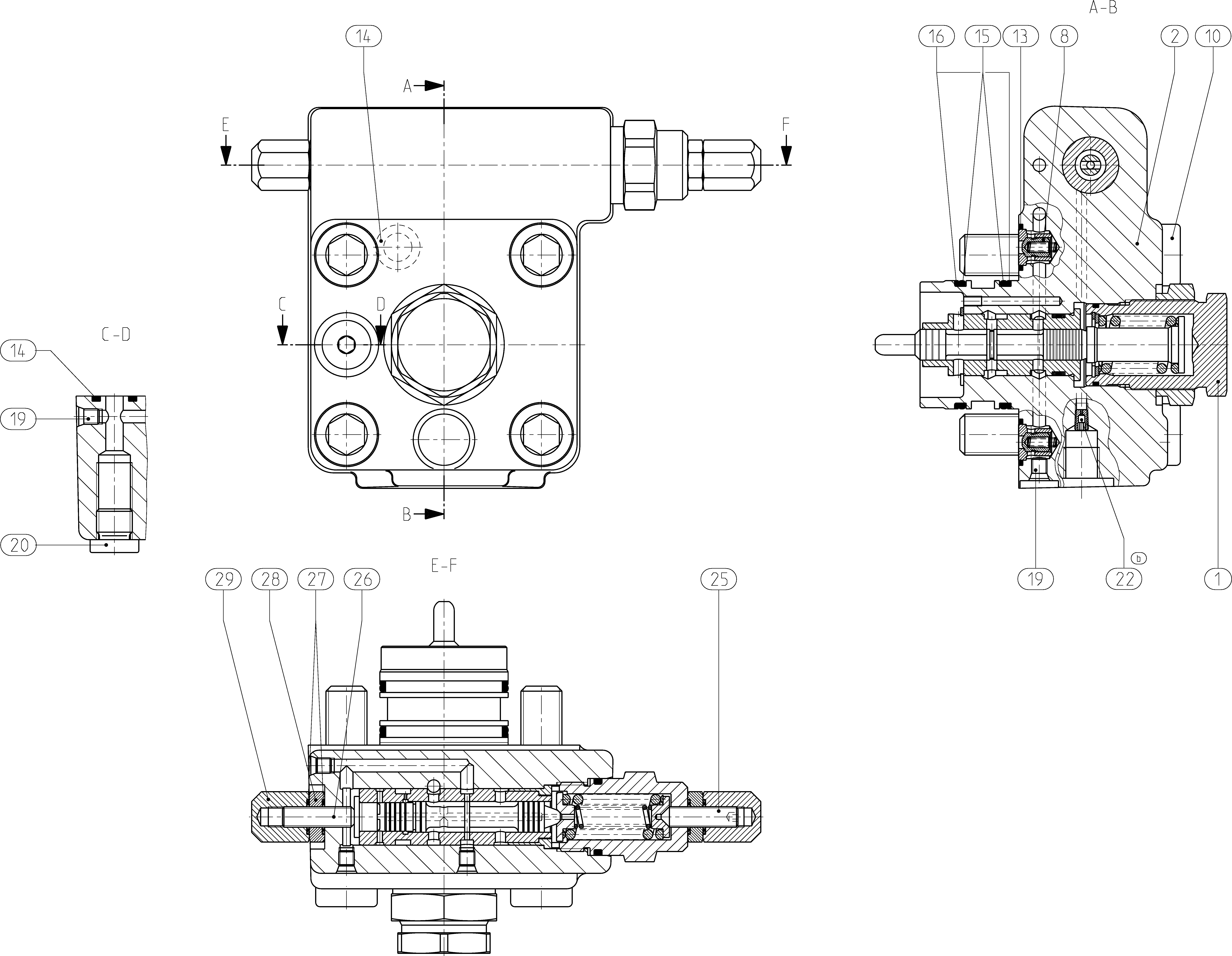

CONTROL PARTR902448382
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910926601 | VALVE INSERT | 1 | ||
| R902447490 | CONTROL HOUSING | 1 | ||
| R910974659 | HY-CHECK VALVE | 2 | ||
| R910126535 | SOCKET HEAD CAP SCREW | 4 | ||
| R910976410 | O-RING | 2 | ||
| R910518336 | O-RINGD | 3 | ||
| R910929855 | O-RINGD | 2 | ||
| R910929791 | BACKUP RINGD | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909153930 | SCREW PLUGD | 2 | ||
| R910923856 | NOZZLE | 1 | ||
| R902408019 | VALVE INSERT | 1 | ||
| R910913807 | SETSCREW | 1 | ||
| R910642827 | BONDED SEAL RING | 2 | ||
| R910913806 | NUT | 1 | ||
| R910913805 | CAP NUT | 1 |
