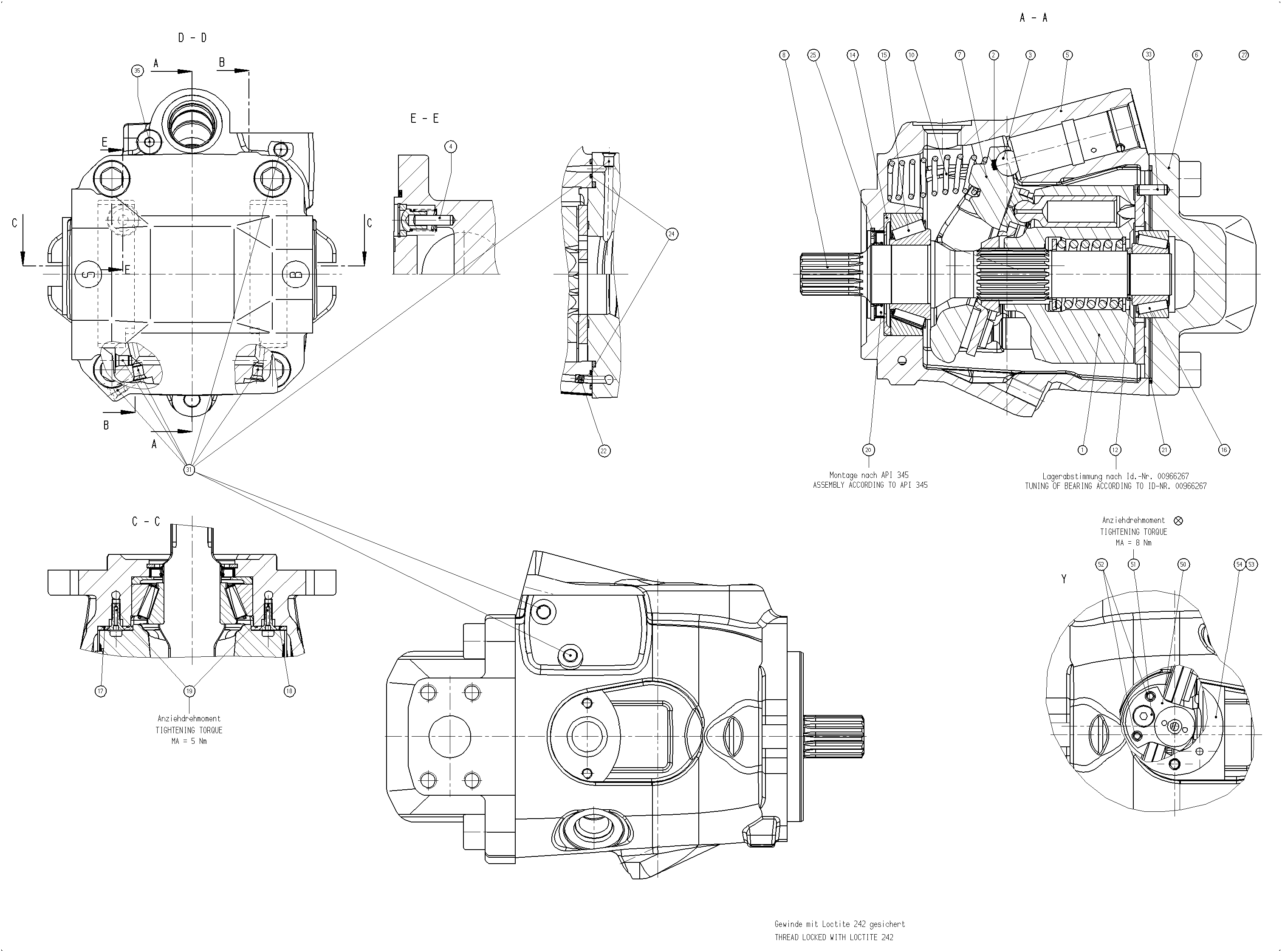

Assembly
BASE UNITR902449532
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902435772 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902473753 | COMPRESSION SPRING | 1 | ||
| R910984014 | BALL STOP | 1 | ||
| R902521024 | PUMP HOUSING | 1 | ||
| R910969372 | CONNECTION PLATE | 1 | ||
| R902445185 | SWASH PLATE | 1 | ||
| R902417387 | DRIVE SHAFT | 1 | ||
| R910928606 | COMPRESSION SPRING | 1 | ||
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R910987963 | STOP RING | 1 | ||
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R902445112 | BEARING SHELL | 2 | ||
| R910993660 | COUNTERSUNK-HEAD SCREW | 2 | ||
| R910793671 | SHAFT SEALING RINGD | 1 | ||
| R913052048 | O-RINGD | 1 | ||
| R910100889 | SETSCREWD | 1 | ||
| R910942133 | R-RINGD | 2 | ||
| R902403814 | RETAINING RING | 1 | ||
| R910110248 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R909156649 | SCREW PLUG | 1 | ||
| R902418548 | SPACER RING | 1 | ||
| R910756598 | O-RING | 1 | ||
| 55 | R910109177 | SOCKET HEAD CAP SCREW | 4 |
