Assembly

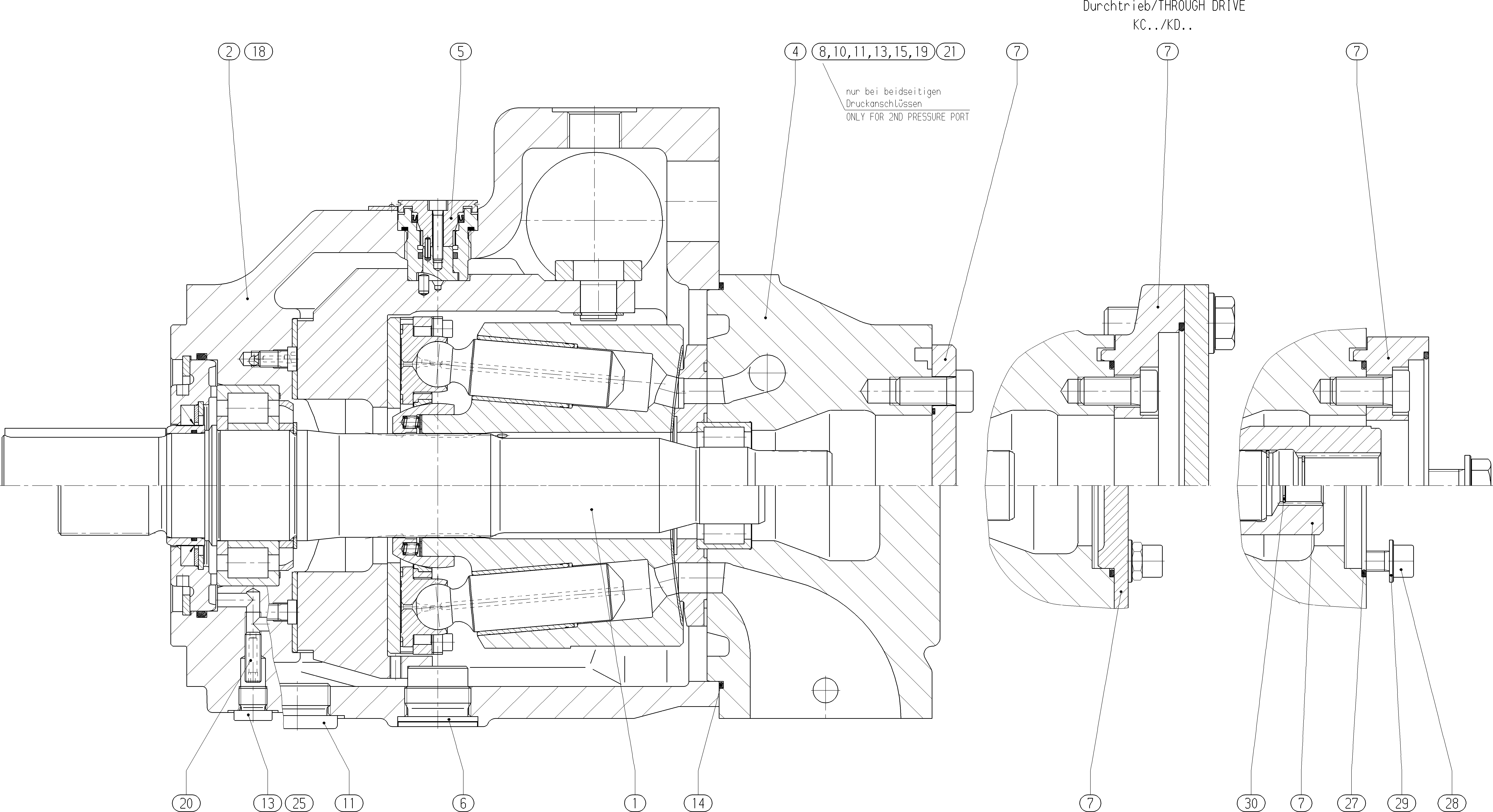

BASE UNITR902450170
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910995246 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910995243 | PUMP HOUSING | 1 | ||
| R910995291 | CONNECTION PLATE | 1 | ||
| R910970503 | INDICATING DEVICE Assembly parts list →L | 1 | ||
| R910929476 | STUD BOLT Assembly parts list →L | 1 | ||
| R902450171 | ATTACHMENT KIT Assembly parts list →L | 1 | ||
| R910209228 | SOCKET HEAD CAP SCREW | 8 | ||
| R909156652 | SCREW PLUGD | 4 | ||
| R909153930 | SCREW PLUGD | 3 | ||
| R910935634 | O-RINGD | 1 | ||
| R910942133 | R-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910995345 | THROTTLE SCREW | 1 | ||
| R910922276 | NOZZLE | 1 | ||
| R910979852 | REFERENCE PLATE | 1 |
