Assembly

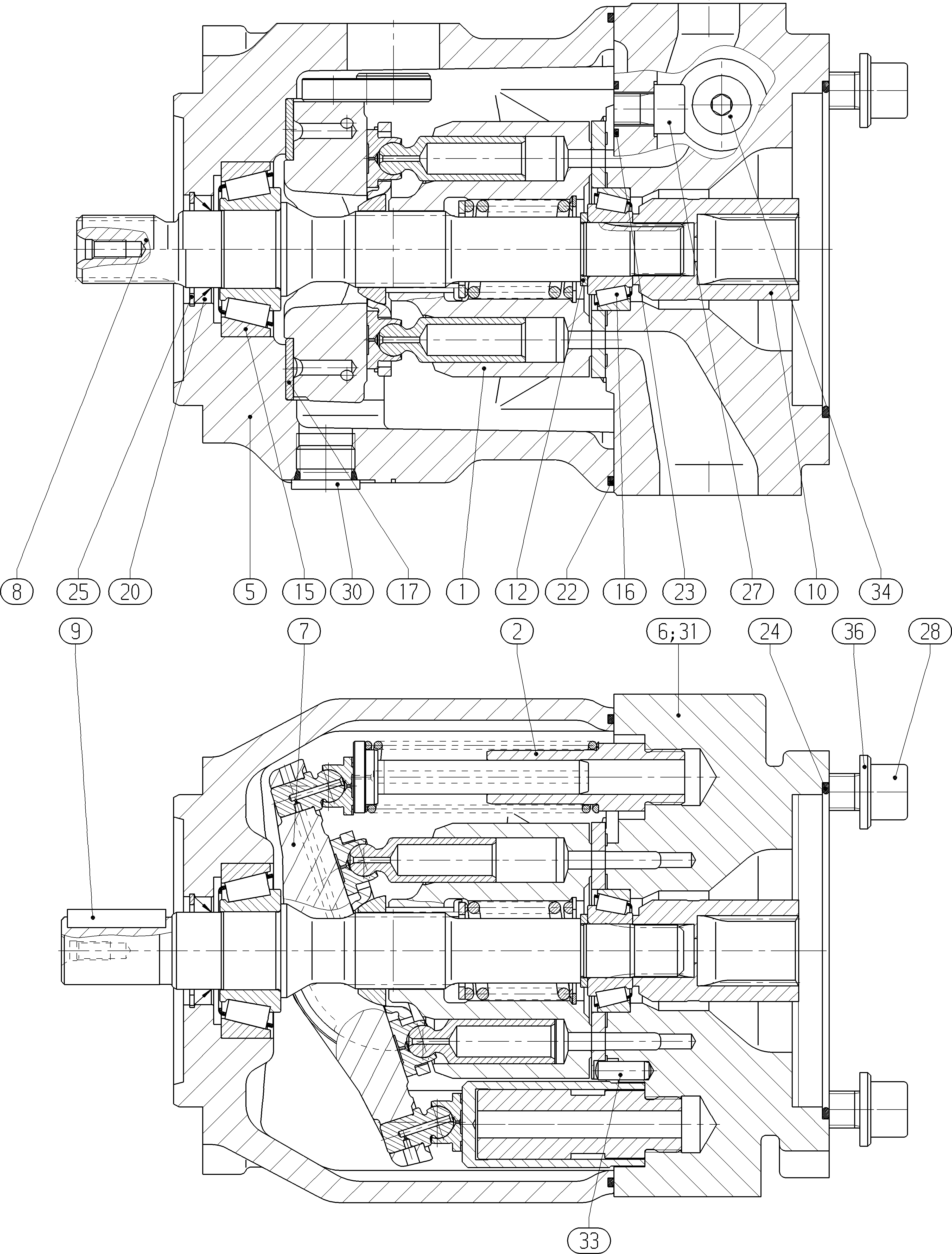

BASE UNITR902451208
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902439597 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910911162 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902550218 | PUMP HOUSING | 1 | ||
| R902417057 | CONNECTION PLATE | 1 | ||
| R910961001 | SWASH PLATE Assembly parts list →L | 1 | ||
| R902417369 | DRIVE SHAFT | 1 | ||
| R902436098 | SPLINED COUPLING | 1 | ||
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| R902438109 | TAPERED-ROLLER BEARING | 1 | ||
| R902438110 | TAPERED-ROLLER BEARING | 1 | ||
| R910902778 | BEARING SHELL | 2 | ||
| R910794325 | SHAFT SEALING RINGD | 1 | ||
| R910976090 | O-RINGD | 1 | ||
| R913052104 | R-RINGD | 4 | ||
| R910640182 | O-RINGD | 1 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910110191 | SOCKET HEAD CAP SCREW | 4 | ||
| R910901969 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 |
