Assembly

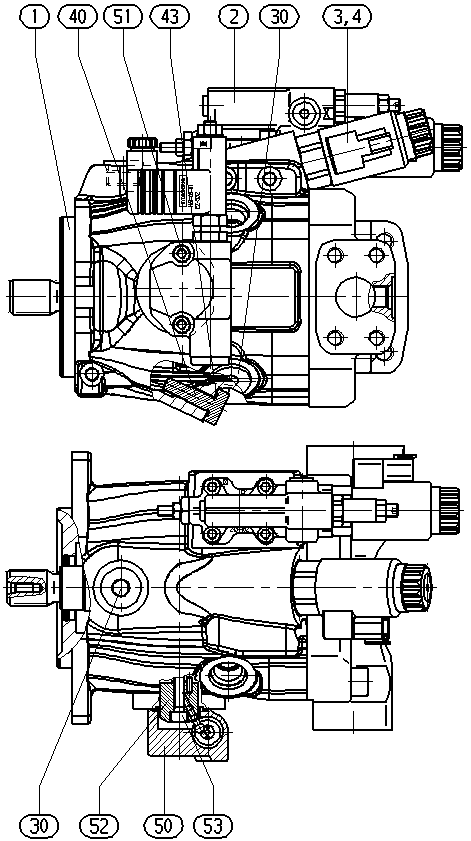

AXIAL-PISTON PUMPR902451717
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902451577 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533342 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902438427 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902438539 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910967343 | SCREW PLUG | 3 | ||
| R902445111 | STOP SCREW | 1 | ||
| R910804886 | O-RING | 1 | ||
| R910986163 | VALVE | 1 | ||
| R910109312 | SOCKET HEAD CAP SCREW | 2 | ||
| R902423611 | CARRIER | 1 | ||
| R910109339 | SOCKET HEAD CAP SCREW | 1 |
