Assembly

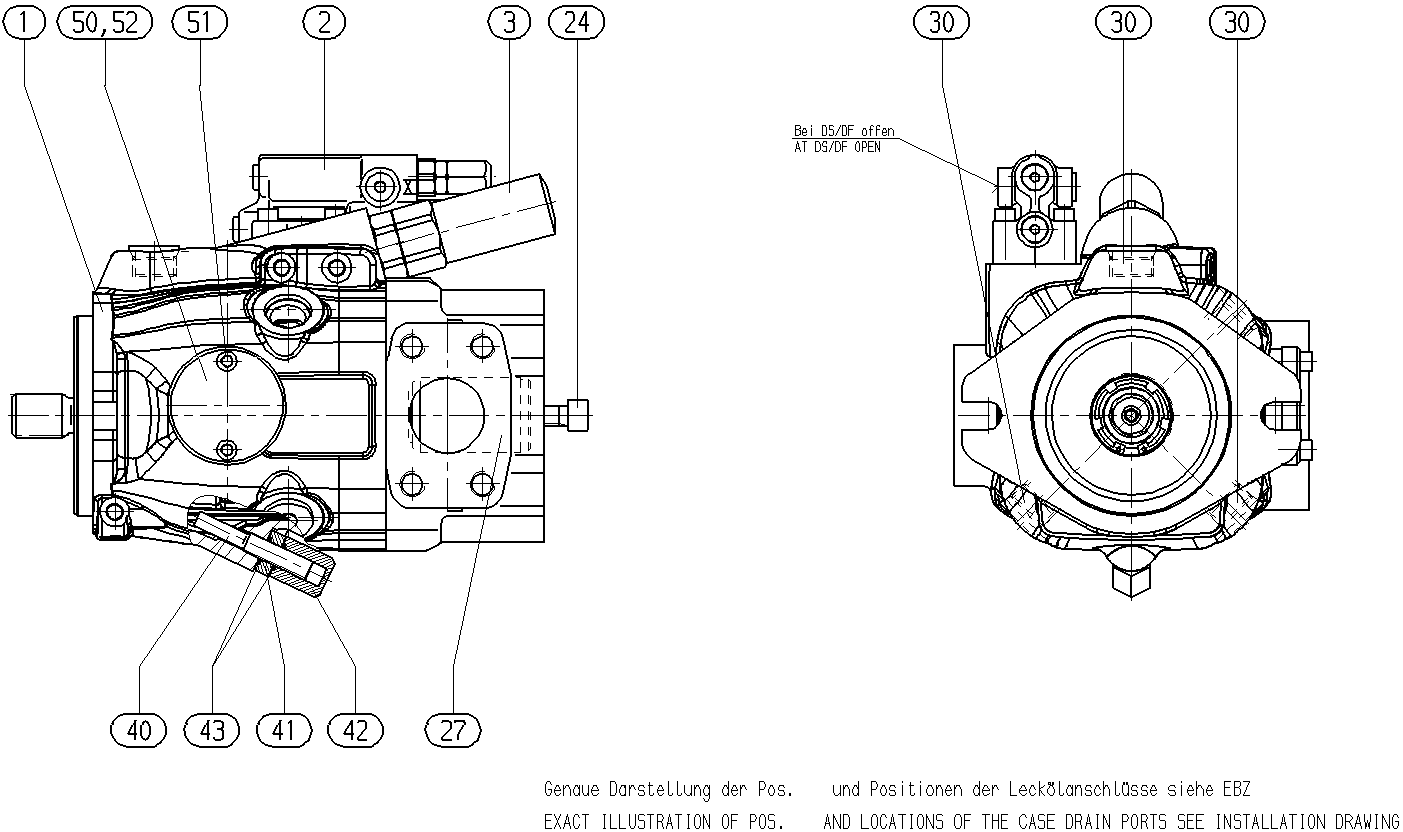

AXIAL-PISTON PUMPR902451864
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902449535 | BASE UNIT Assembly parts list →L | 1 | ||
| R902450439 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902471098 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910943529 | SPLINED COUPLING | 1 | ||
| R910967343 | SCREW PLUG | 3 | ||
| R910947854 | STOP SCREW | 1 | ||
| R910998240 | NUT | 1 | ||
| R910961839 | CAP NUT | 1 | ||
| R910804886 | O-RING | 2 | ||
| R910967428 | COVER | 1 | ||
| R910109304 | SOCKET HEAD CAP SCREW | 2 | ||
| R910756601 | O-RING | 1 |
