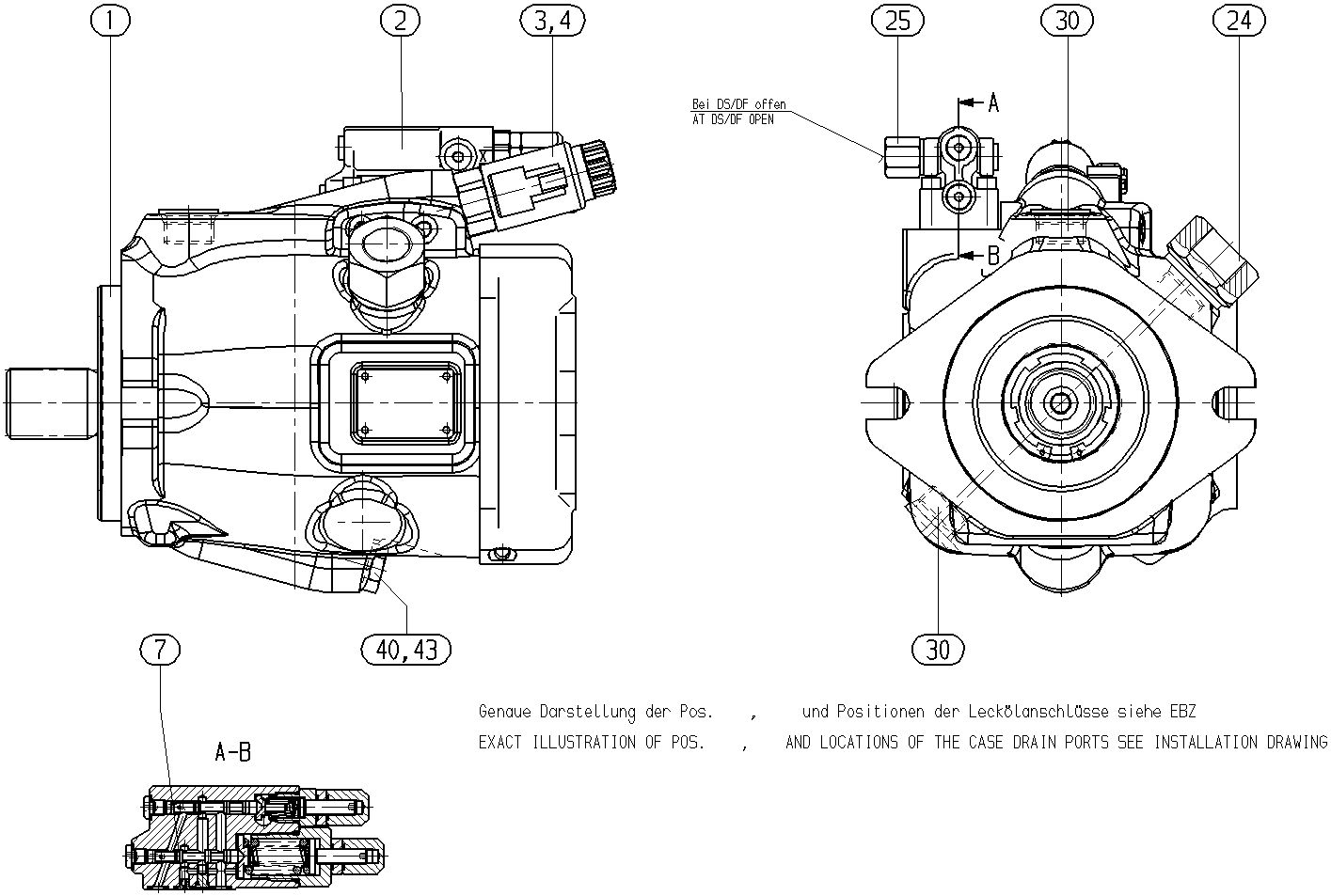

Assembly
AXIAL-PISTON PUMPR902453286
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902444215 | BASE UNIT Assembly parts list →L | 1 | ||
| R902470580 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902438428 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902540855 | NOZZLE | 1 | ||
| R910913483 | ADAPTER Assembly parts list →L | 2 | ||
| R902409426 | ADAPTER Assembly parts list →L | 2 | ||
| R910967351 | SCREW PLUG | 2 | ||
| R902429967 | STOP SCREW | 1 | ||
| R910919314 | O-RING | 1 |
